Microtech Gefell UMT 800 | Dark Bronze

Breed inzetbare Multi Pattern groot membraan

Prijs op
aanvraag

Voeg dit product toe aan uw offerte

In offerte

Vragen? Betere prijs gezien?

Bel 0512 - 340457 of neem contact op!

Product omschrijving

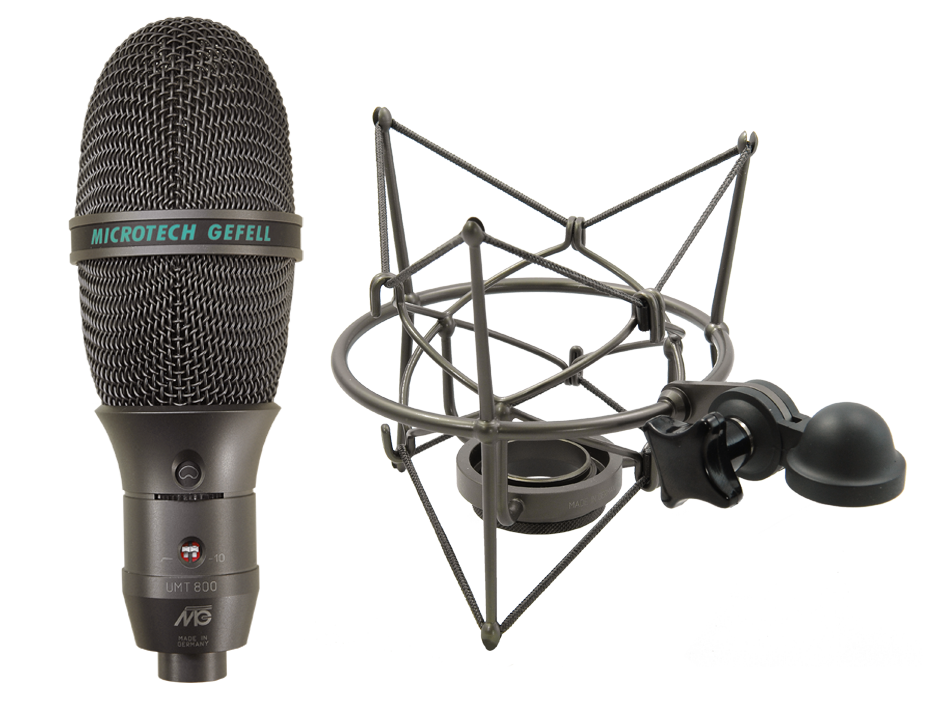

Microtech Gefell UMT 800 | Satin Nickel

The UMT 800 is a large format studio microphone featuring a pickup capsule with a long history of reliable performance. Five polar patterns make this microphone an ideal choice for a wide range of professional and semi-professional recording situations. The UMT 800 produces a clean colorless sound ideally suited for accurate recording of instrumental and vocal soloists in music studios, motion picture scoring stages, and television broadcast studios. Two distinguishing characteristics of this microphone are its high sensitivity and the outstanding signalto-noise ratio.

The pickup capsule is a pressure gradient transducer using dual diaphragms and a single brass back plate. The large diameter plastic diaphragms are gold-sputtered. Varying the polarization voltage of the diaphragms with the pattern switch located just below the head grille, produces five patterns: omni, widecardioid, cardioid, hypercardioid and figure 8. The direction of maximum sensitivity is perpendicular to the microphone's axis (side addressed).

The microphone preamplifier is a transformerless design with a symmetrical output stage. This design yields a wide dynamic range and a low self noise floor. The sensitivity can be reduced by a 10 dB switch located on the body of the microphone when recording very loud sound sources. A low frequency roll-off switch also located on the body of the microphone, reduces the proximity effect for close-range applications.



Technical data

Polar pattern omni, widecardioid, cardioid, supercardioid, figure of 8

Acoustic operating principle pressure gradient transducer

Frequency range 20 Hz to 20.000 Hz

Sensitivity at 1 kHz 8 / 13 mV/Pa ± 3 dB

Switch position "reduced bass roll-off" at 90 Hz-10 dB ± 1 dB

Output impedance 150 Ohm

Noise level CCIR 468-426 dB

DIN EN 60268 -414 dB-A

Signal-to-noise ratio CCIR weighted68 dB

A-weighted 80 dB

SPL for THD 0,5 % 139 / 135 dB

with 10 dB preattenuation 149 / 145 dB

Dynamic range 121 dB

Current consumption 3 mA

Output connector XLR3M

Weight 540 g

Length 195 mm

Diameter 70 mm

Surfacesatin nickel, black matt
