Antelope Audio Orion Studio SC Immersive Bundle

ORION STUDIO SYNERGY CORE - Thunderbolt™ 3 & USB interface with 12 discrete preamps and Synergy Core FX

THE HEART OF YOUR PROFESSIONAL RECORDING STUDIO.

With high-resolution sound and comprehensive I/O, the Orion Studio Synergy Core is designed to be everything you need in any modern recording and mixing scenario.

Capture the sounds of all your instruments with 12 low-noise discrete preamps and create your own virtual studio with the 51 included effects.

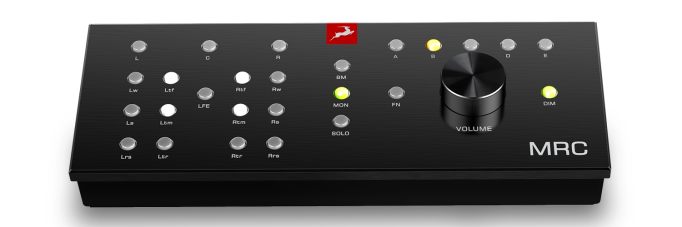

MRC - Multichannel Remote Controller

ADVANCED MONITORING MADE SIMPLE

MRC is the long-anticipated hardware extension of Antelope’s acclaimed surround sound and immersive audio monitoring system. The layout of this advanced monitor controller mirrors all major controls of the system for a smooth and intuitive workflow, thanks to fast preset recall and streamlined multichannel functionality.

As a physical extension of the system, the compatible Antelope MRC hardware controller provides streamlined and tactile controls that are key for effortless yet advanced monitoring.

KEY FEATURES - ORION STUDIO SYNERGY CORE

Analog & Digital Connectivity

• 14 x 24 Rackmount audio interface with Thunderbolt & USB connection for Mac/Windows;
• 12 Discrete ultra-linear preamps with 75dB of gain on combo XLR jacks for studio-quality recordings. All work as microphone/line/Direct-In inputs, and four of them are Hi-Z compatible. All preamps are fully DC-coupled;
• Two analog inserts (applied to preamp 1 and 2) to connect analog gear without the need to do additional routing in the DAW or in the control panel;
• 16 DC-coupled analog output channels over a D-Sub 25 connector allowing control of modular synthesizers;
• Two reamp outputs on TRS ¼ jacks for further amp processing of guitar signal;
• Thunderbolt 3 (up to 32 channels) and USB 2.0 (up to 24 channels) ports for native DAW application with custom macOS & Windows drivers;
• Digitally expandable over ADAT (up to 16 channels) and SPDIF (up to 2 channels);
• Two stereo headphone outputs;
• Two monitor outputs that can work both in parallel or in A/B mode.

Clocking & Conversion

• Proprietary 64-bit Acoustically Focused Clocking technology for increased width, separation, and detail in musical performances;
• Proprietary Jitter Management algorithm delivering truthful and expanded soundstage;
• High-resolution A/D and D/A conversion ensuring artefact-free recordings and mastering-grade converter with 130dB headroom for critical listening without coloration or signal degradation.

Real-Time Effects Processing

• Collection of 50 analog-modeled effects featuring classic as well as rarely emulated compressors, EQs, mic preamps, and guitar amps and cabs;
• 6×DSP, 2×FPGA Synergy Core proprietary onboard real-time platform for effects processing with imperceptible latency;
• Up to 128 effects instances per session loaded simultaneously on 32 individual virtual racks.

Workflow-Enhancing Features

• Advanced digital Routing Matrix that allows execution of complicated input/output routing with a simple drag and drop functionality;
• 4 mixers with 32 channels each for creating individual cue mixes and sub-mixes, allowing you to distribute headphone mixes for your musicians while applying pan, reverb, other effects and stereo link;
• Customizable presets complete with signal routing, level adjustments, mixer settings and sub-mixes;
• Direct hardware monitoring with effects, processed in real-time with imperceptible latency;
• Direct-In function allowing you to bypass the preamp architecture and record directly through the converter;
• Fully DC-coupled I/O to control and receive CV from modular synths;
• Easily accessible talkback with built-in microphone;
• Front panel with volume knob with selectable sources and functional buttons;
• Option to work without being connected to a computer (standalone operation);
• Wireless control of software features from a separate computer connected to the same network.

KEY FEATURES - MRC

Functionality

• Supports 23+ formats from stereo to 9.1.6 Dolby Atmos
• Comprehensive and customizable preset recall system for fast switching between input sources, outputs and much more
• Individual mute and solo functionality for each speaker across all supported formats
• Rotary encoder for volume control over either calibrated multichannel output or dedicated stereo monitor output
• Mute and dim functionality for currently selected output
• Plug-and-play compatibility with Atmos-ready Antelope Audio interfaces, via a single USB computer connection
• Bus-powered over the USB connection

Workflow and design

• Designed for seamless monitoring workflow, with a tactile feel
• Carefully pre-defined buttons with LED indication remove second guessing
• Compact size, ready to fit comfortably on any desk
• Metal housing with a black brushed aluminum finish provides both endurance and stylish looks
• Designed and manufactured in the EU
