CONVERSION & CLOCKING
• Class-leading AD/DA conversion with up to 127dB of headroom
• Recording, mixing and playback at up to 24-bit/192kHz
• Proprietary 64-bit Acoustically Focused Clocking (AFC™) technology & Jitter Management algorithm delivering increased width, separation, and detail in musical performances.
CONNECTIVITY
• 2× Discrete ultra-linear preamps with 65dB of gain for studio-quality recordings. All work as microphone/line/Hi-Z inputs, on combo XLR jacks
• Thunderbolt™ 3 port (for Zen Go Thunderbolt) carrying 16 input and 16 output channels in any popular DAW with custom macOS & Windows drivers
USB2.0 type C port (for Zen Go USB) carrying 8 input and 8 output channels in any popular DAW with custom macOS & Windows drivers
• Secondary USB-C port (for Zen Go USB) allowing reverse-charging
• Digitally expandable over S/PDIF
• Analog monitor outputs including 1x stereo output over RCA and 1× stereo output over TRS (mirrored)

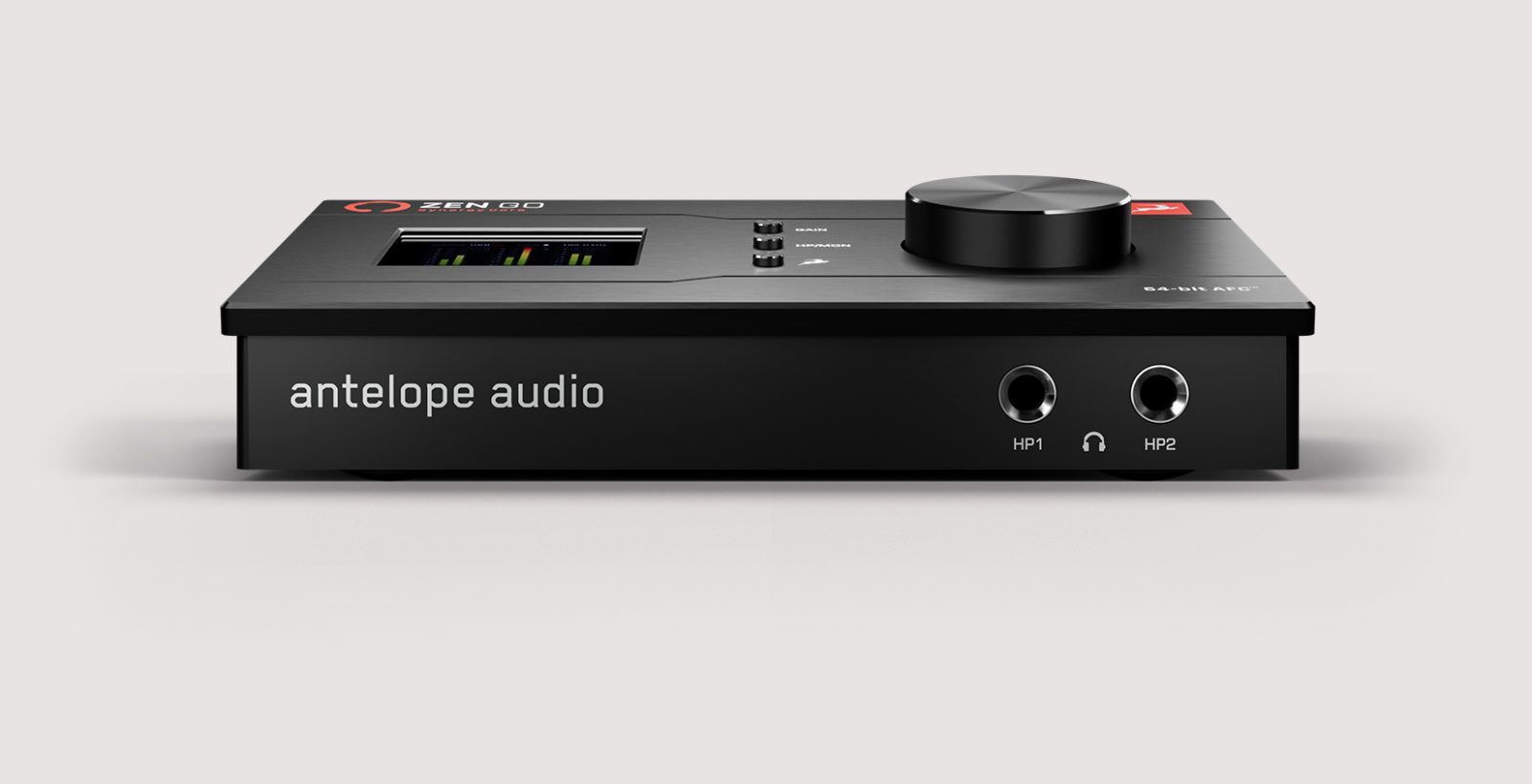

• 2× stereo headphone outputs with separate gain control, compatible with wide variety of headphones
WORKFLOW-ENHANCING FEATURES
• Bus-powered interface powered by the Thunderbolt or USB-C connection without the need for a dedicated power source
• Direct monitoring with Synergy Core effects, processed in real-time with imperceptible latency
• Simplified I/O routing with pre-configured settings, allowing immediate recording and playback
• Digitally expandable over S/PDIF
• Analog monitor outputs including 1x stereo output over RCA and 1× stereo output over TRS (mirrored)
• 2× stereo headphone outputs with separate gain control, compatible with wide variety of headphones
REAL-TIME EFFECTS PROCESSING
• Synergy Core proprietary onboard platform powered by DSP & FPGA chips for real-time effects processing with imperceptible latency
• Collection of 37 Synergy Core effects modeled after classic and rare analog outboard gear
37 INCLUDED SYNERGY CORE EFFECTS
