API 2448 Console

API 2448 Console

any configuration for any room

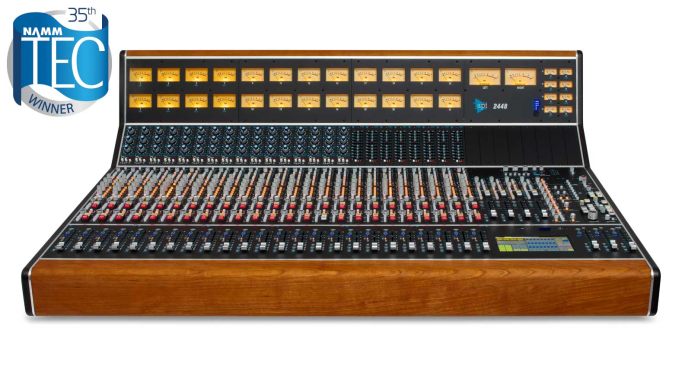

The 2448 console offers multiple channel and layout configurations making it the most versatile console we offer. Available in 24, 32, & 40 frame sizes while being able to add a producers desk and rack bay for additional 19" outboard gear. The 2448 expands API's powerful line of world-class analog recording consoles and continues API's nearly 50 year legacy of combining functionality and reliability with the unmistakable warmth of the API sound.

API 2448 features

• Available in 24, 32, and 40 Channel Frame sizes
• Each channel equipped with Mic Pre and Equalizer
• Accepts API 500 Series Equalizers
• Each Channel features Dual Inputs (small fader rotary pot, pan, solo, mute, safe and flip)
• 56 Channels available to the Mix Bus – in a 24 Channel Frame
• 8 Multitrack Buses
• 8 Auxiliary Buses
• 1 Stereo Bus
• 4 Stereo Returns, 100mm faders (manual or automated) with Multitrack and Stereo Bus assign
• Full Center Section Control
• Surround 5.1 Center Section Monitoring
• Classic Analog Metering
• Global 0dB Small Fader Bypass
• 529C Stereo Bus Compressor (optional)

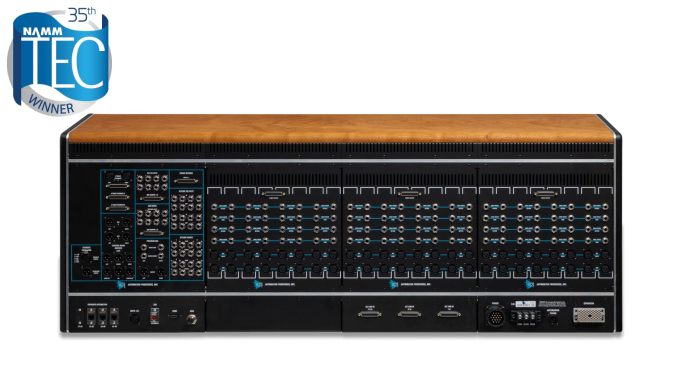

• Comprehensive Rear Panel IO Connectivity

Final Touch Automation^®

Final Touch Automation combines system reliability, user flexibility and operational simplicity and offers a host of features found only in the most expensive and sophisticated console automation systems typically costing many times more. Consoles can be factory-fitted with Final Touch Automation prior to delivery, and existing 1608-II consoles can be retrofitted with Final Touch Automation

Final Touch Automation® Features

• Reliable, self-contained system requiring no external computer
• Individual Switch Control on each fader
• Global Control Panel in the console Center Section
• Hi Resolution 7.5″ Touch Screen Control
• Files are easily saved to standard memory cards
• Automated Mute and Insert switches on each channel
• Unlimited Fader Groups with 2 dedicated Group Master Faders
• Motorized Stereo Program Fader
• 4 Motorized Stereo Returns
• DAW Control with unity gain audio bypass
• Unlimited Mix Restore points
• Comprehensive Operations Manual

All options and downloads can be found on API's 2448 Console product page.
