Audix A 127

A127

Omni-directional metal film condenser microphone

OVERVIEW

A127 is a reference-grade omnidirectional condenser microphone, designed to capture the most accurate and purest form of acoustic instruments and sound sources. Fundamental to the A127 design is the low-noise Type 1 metal film capsule and precision-machined electro-mechanical components. The A127 delivers unmatched performance for recording, broadcast, film and sound design.

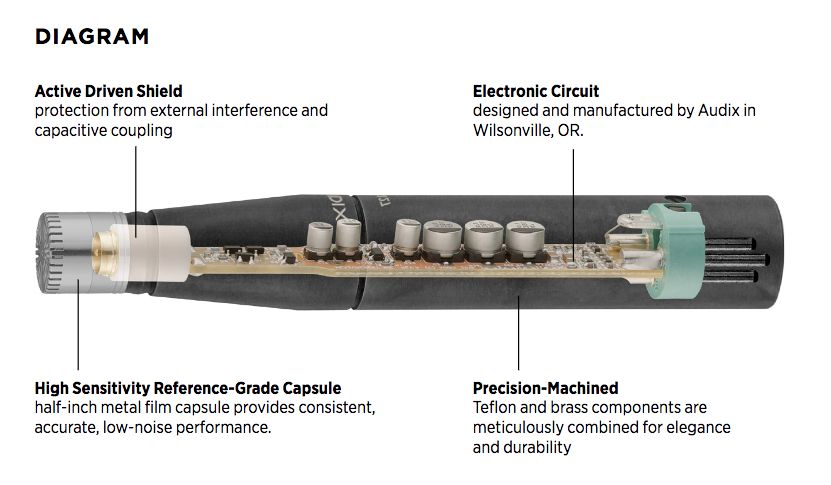

With frequency response of 10Hz-20kHz and wide dynamic range of 133dB the A127 excels in the most demanding applications. Capsule design features a precision-tuned 3-micron metal diaphragm, resulting in exceptionally accurate and stable response. The A127 circuit is designed and built to exacting specifications and is coupled to the capsule by a series of driven shields to protect the microphone from external interference and capacitance coupling. The mechanical components of the gold-plated shield and the corrosion-resistant housing are precision-machined by Audix in Wilsonville, Oregon.

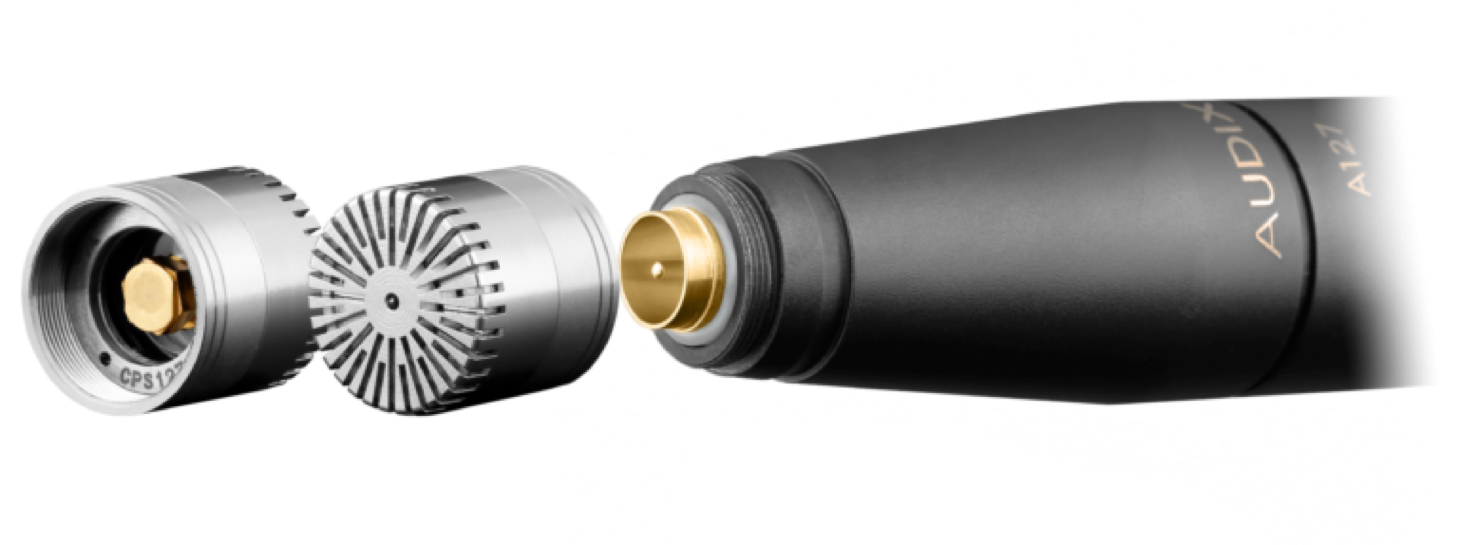

ADVANTAGES OF THE HALF-INCH METAL FILM CAPSULE

The A127 features a reference-grade capsule (Type 1 IEC 61094-4 compliant) with a precision-tensioned metal film diaphragm, providing consistent and reliable performance, even in the most demanding environments. The half-inch size of the diaphragm represents the “sweet spot” for acoustic sound capture, which is why it has become the standard for acoustic measurement. The ultra-thin, 3-micron metal film diaphragm provides excellent transient response and a level of detail and realism simply not attainable with conventional diaphragm materials.

USER TIPS

For musical applications such as symphony orchestra, strings, brass, choir, pipe organ, percussion and other acoustic instruments, the phase response, accuracy and clarity of the A127 make it the perfect choice for spot miking, as well as mid-field and far-field applications. Metal film omnidirectional microphones are able to capture the complete character, tonality, and essence of an instrument in the most uniform and accurate fashion.

With its omnidirectional polar pattern, the A127 excels as a room mic and can be incorporated into a variety of stereo miking techniques. Professional recording engineers often use a stereo pair of omnidirectional microphones for recording orchestra, stringed instruments and string ensembles, piano and piano ensembles, classical guitar, pipe organ and choir. Depending on the size and acoustics of the room, omnidirectional microphones will most accurately recreate the experience of being in the audience.

Given its compact size, low-noise preamp and extraordinary stability, the A127 is ideal for field recording, documentaries, sound gathering, and acoustic measurements.
