Black Lion Audio Micro Clock MKII

Compact, zeer nauwkeurige, low-jitter external word clock

Prijs op
aanvraag

Voeg dit product toe aan uw offerte

In offerte
Leverings- en Retourbeleid

Vragen? Betere prijs gezien?

Bel 0512 - 340457 of neem contact op!

Product omschrijving

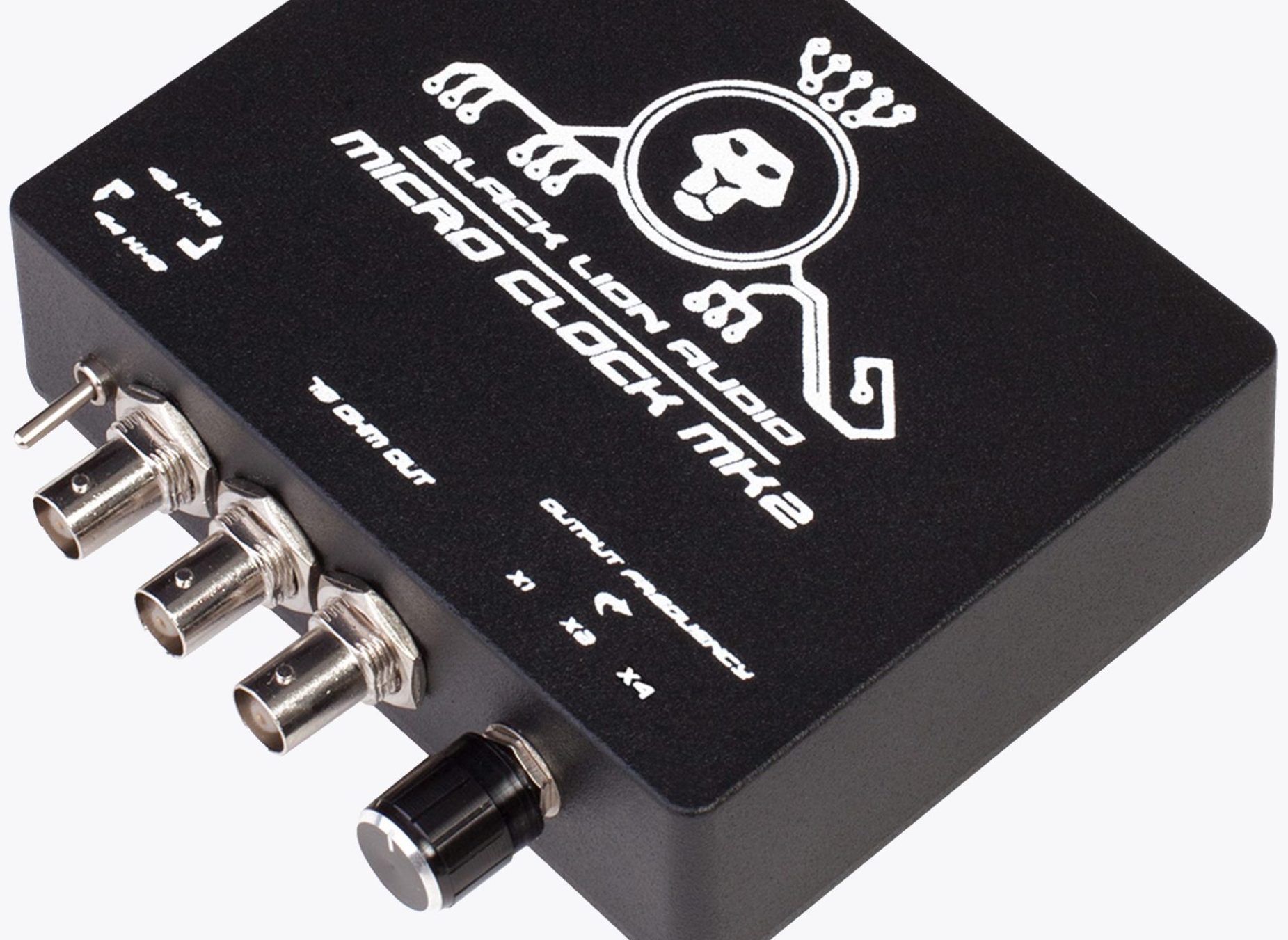

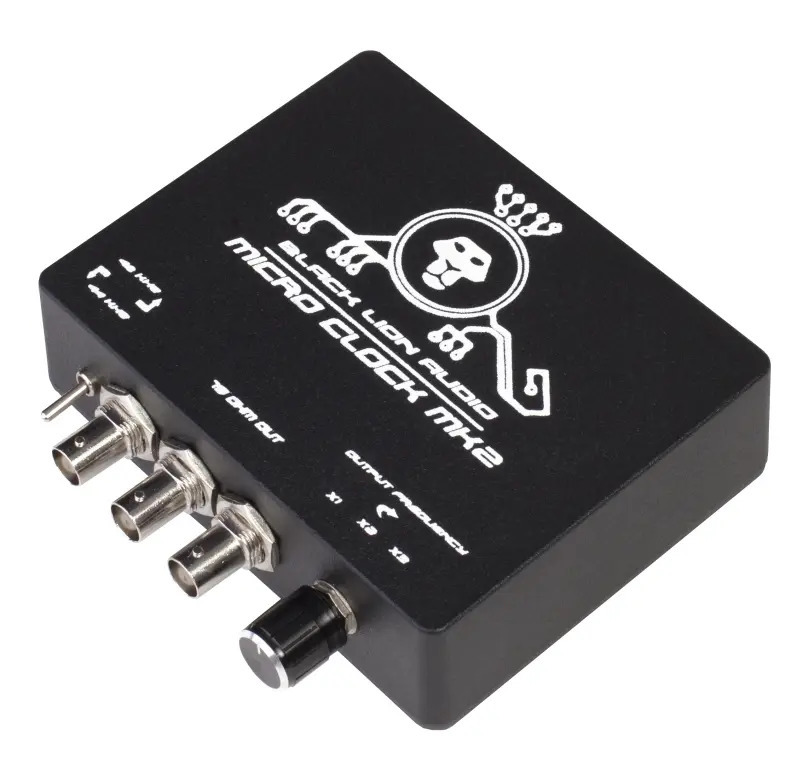

Micro Clock MKII

The Micro Clock MKII is a simple, yet elegant design in external clocking. It features ultra-low jitter, third order crystal oscillators with a high current parallel drive circuit designed to maintain harmonic content of the signal regardless of loading conditions. In addition to this, proprietary noise reduction circuitry dramatically eliminates unwanted switching harmonics normally found in digital signals. The Micro Clock MKII is one of the best performing external word clocks in the pro audio market today.

The Micro Clock MKII is simple and probably even boring looking by most standards. It’s housed in a rugged 3” x 4” chassis that provides optimum RF shielding. It has no lights, no frequency display, and none of the usual visual candy that your friends might envy. However, for a modest black box, it does its job incredibly well and at a price that’s unheard of for this level of performance!

It features six selectable output frequencies from 44.1 kHz on up to 192 kHz. The output level is approximately 5 volts peak to peak. Jitter at the crystal oscillator is approximately 1 picosecond RMS, and just under 10 picoseconds RMS at the output. The power supply is a 9 volt DC wall wart that’s capable of accepting both 120 and 240 volts AC. The clock is compatible with all modern digital devices that have 75 ohm BNC word clock inputs.

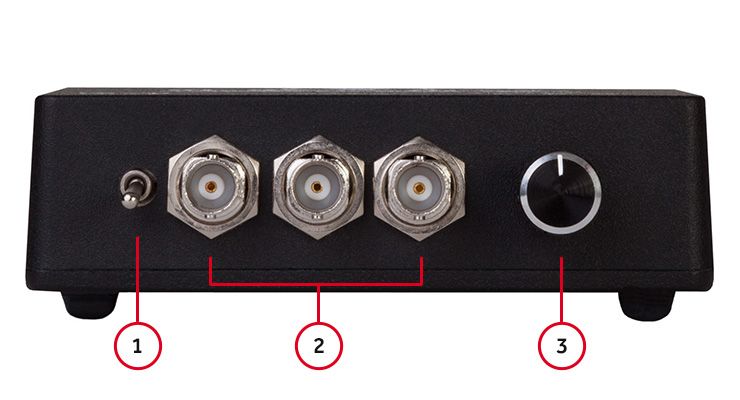

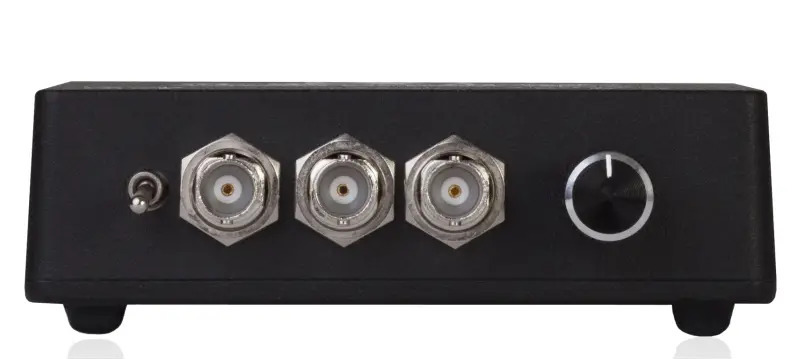

  1. Base frequency selector (44.1kHz or 48kHz)
  2. 75 ohm BNC outputs
  3. Frequency multiplier (x1, x2, x4)

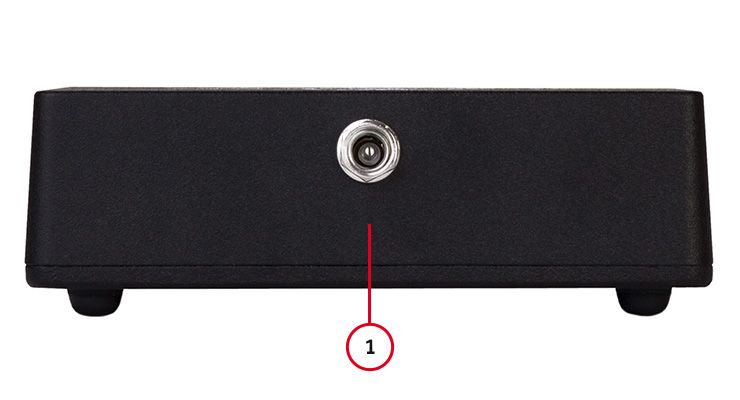

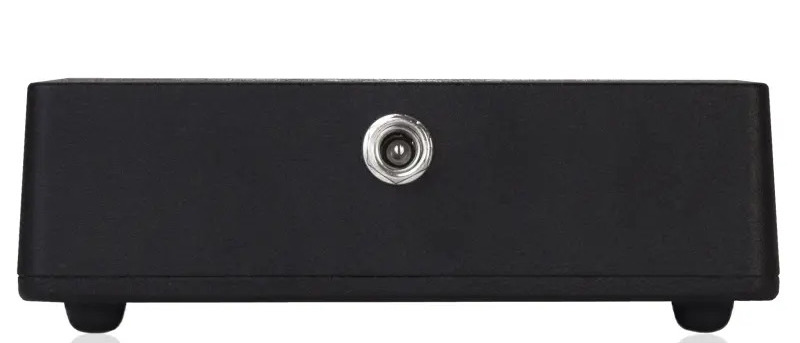

  1. 9VDC input jack (use a BLA-specified power supply only)

Features

Patented Black Lion Audio clocking technology

Output: 3 BNC with fixed 75 ohm terminations @ 5 volts peak to peak

Power: 9 volts DC

Sampling rates: Six selectable rates, 44.1 kHz-192 kHz (44.1, 48, 88.2, 96, 176.4, 192)

Jitter:  Less than 10 picoseconds of accumulated jitter measured using a delta sigma averaging method
