Product is toegevoegd aan uw winkelwagenBurl Audio BMB3 MOTHERBOARD – DANTE
Dante Moederbord voor de Burl B80 en B16 Mothership
Combineer met deze producten
Burl Audio B 16 MOTHERSHIP
The mothership voor Burl modules. Tot 16 kanalen DA of AD uitbreidbaar Lees meer...
Voeg dit product toe aan uw offerte
Burl Audio B 80 MOTHERSHIP
The mothership voor Burl modules. Tot 80 kanalen DA of AD uitbreidbaar. Lees meer...
Voeg dit product toe aan uw offerte
Product omschrijving

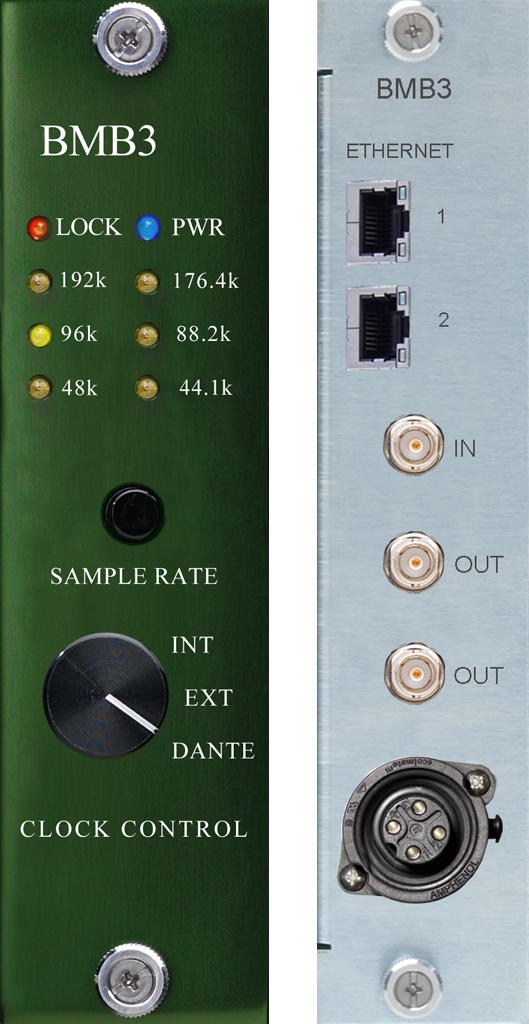

BMB3 DANTE MOTHERBOARD
The BMB3 features two Ethernet ports for use with Dante enabled DAWs and any Dante enabled device, such as a digital mixing console. With two Dante ports, 64in/64out at 44.1k, 48k, 88.2k, 96k, and 32in/32out at 176.4k, and 192k are supported. With 6 BAD8s and 4 BDA8s a 48×32 IO can be achieved. With 2 BAD8s and 8 BDA8s a 16×64 IO can be achieved. With the configurability of the MOTHERSHIP the IO possibilities are limitless.
BMB3 Features:
• 2 Dante Ethernet ports (sold standard with one port)
• 64-channel IO at 44.1k, 48k, 88.2k, 96k
• 32-channel IO at 176.4k, 192k
• 2 BNC Word Clock outputs
• 1 BNC Word Clock input
