Buzz Audio 500 series ELIXIR mic preamp

Microfoonvoorversterker voor 500-serie

500 series

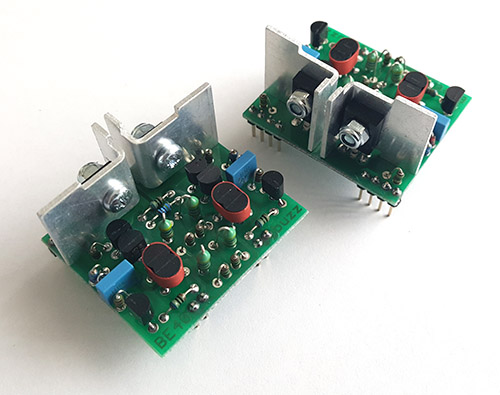

  • True Class A BE40 amplifiers

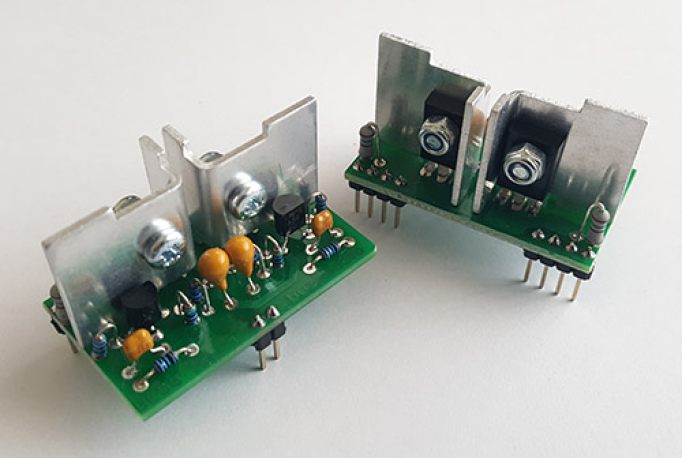

  • BE50 high current line drivers
Prijs op
aanvraag

Voeg dit product toe aan uw offerte

In offerte

Vragen? Betere prijs gezien?

Bel 0512 - 340457 of neem contact op!

Product omschrijving

ELIXIR

mic preamp for 500 series

Standing out from the crowd, the Elixir Class A microphone preamp offers exciting and vibrant tones in the 500 Series format.

audio path quality

All discrete signal path using Buzz Audio's True Class A BE40 amplifiers at the input and BE50 high current line drivers to excite the Lundahl LL1517 output transformer. The topology is quite different to most other mic preamps in that it is balanced from input to output. The instrument input features our BE43 "bootstrapped FET" high impedance interface that really pumps as a bass DI.

mojo not mud

The Elixir is an ideal compliment to other 500 series preamps that feature a dark or middly sound. The wide frequency response and fast transient response plus color from the output transformer generate a "warm sweet liquid" sound quality that sets it apart from that crowd. These attributes make the Elixir particulary good at recording percussion, drums (you need to hear it on snare), vocals and stringed instruments. When used at high gains and high output levels the sound of the Elixir does not turn "dirty", unlike preamps with poor slew rate performance thereby generating dynamic distortions.

specs that matter

The Elixir noise floor is as low as can under the laws of physics and there is plenty of gain for low output ribbon and dynamic microphones. The output headroom at +34dBu is outstandingly unique in the 500 series format, and adds a feeling of real effortlessness to the sound quality. The transformer-less mic input presents a "non-reactive" load to the microphone which means you hear exactly what the microphone manufacturer intended, without the unpredictable nature of an input transformer.

controls and functions

  • GAIN - 41 detented pot that sets gain between +22 to +70dB.
  • POLARITY - normal or reverse polarity switched at the input inverts the signal 180 degrees, used to match spaced microphones such as top and bottom snare drum..
  • 20dB PAD - this switch introduces a 20dB pad right at the mic input for high level signals. Because it is part of the input circuit network, using the pad does not change the sound of the preamplifier.
  • IMPEDANCE - selects high or low input impedance. For the mic input it is 3kohms or 1kohms. There is no right or wrong setting for this function but it can change the tone of dynamic and ribbon microphones. When using the DI input it is switched 1MEG ohms or 20k ohms, which may similarily alter the tone of bass or guitar pickups.
  • +48V - switches on the phantom power for condensor microphones and powered DI boxes.
  • METER - four leds give visual indication of peak output level.
