DPA 4061-OC-IMK CORE Instrument Mic Kit for Loud SPL

Complete kit with mics and accessories


• Extremely rugged and reliable
• Exceptional audio quality
• Low noise and high sensitivity
• Large selection of accessories
• Modular adapter system fits most professional wireless systems
• We have collected our award-winning miniature microphones in specialized kits that contain the mics and accessories you need to capture fantastic sound no matter what you need.

Used with the vast array of complimentary accessories, our miniature microphones are ideal for a broad range of applications. Whether reproducing the voice or an instrument in film, theater, television or other close-miking settings, these mics will not disappoint.

4061 Instrument Microphone Kit

Similar to the 4060 Instrument Microphone Kit, this kit is designed to use as a close-miking solution for a wide variety of musical instruments. The 4061 Miniature Omnidirectional Microphone, Loud SPL offers a very clean, detailed and natural sound quality. This leaves it up to the user to decide on the correct placement to achieve the desired timbre. The mic can handle 144 dB peak before clipping, allowing the microphone to be used even for snare drums, guitar/bass speaker cabinets or other high SPL sound sources.

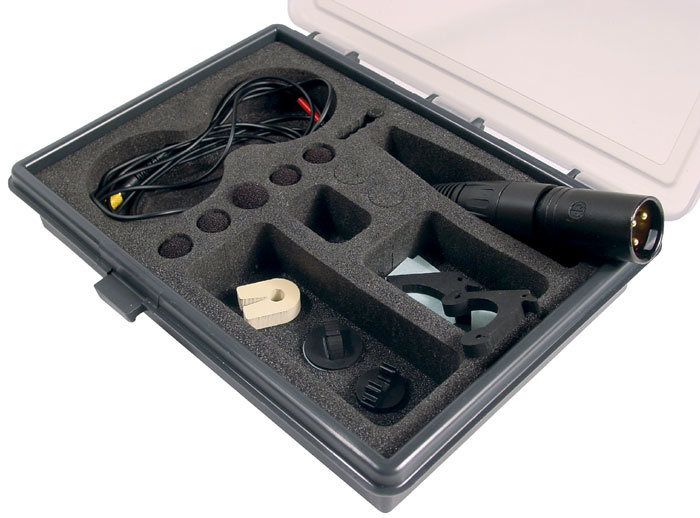

This kit is also perfect for studio use or amplification for live use. There are many accessories included in the kit. It contains holders for strings, universal surface mounts with double-sided tape, a magnet mount and foam windscreens.



Specifications

Directional pattern

Omnidirectional

Principle of operation

Pressure

Cartridge type

Pre-polarized condenser

Frequency response

20 Hz - 20 kHz

Effective frequency range ±2 dB

Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz

Sensitivity, nominal, ±3 dB at 1 kHz

20 mV/Pa; -34 dB re. 1 V/Pa

Equivalent noise level, A-weighted

Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))

Equivalent noise level, ITU-R BS.468-4

Typ. 35 dB (max. 38 dB)

Distortion, THD < 1% - Legacy

120 dB SPL RMS, 123 dB SPL peak

Distortion, THD < 1% - CORE

126 dB SPL RMS, 129 dB SPL peak

Dynamic range - Legacy

Typ. 100 dB

Dynamic range - CORE

Typ. 106 dB

Max. SPL, THD 10%

134 dB SPL peak

Rated output impedance

30 - 40 Ω

Cable drive capability

Up to 300 m (984 ft) with DAD6001-BC XLR Adapter

Power supply (for full performance)

For wireless systems: Min. 5 V - max. 10 V through DPA adapter
With DAD6001-BC: P48 (Phantom Power). Will work from 12 V

Current consumption

Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter

Connector

MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack

Color

Black, beige, brown or white

Weight

7.5 g (0.26 oz) incl. Cable and MicroDot connector

Microphone diameter

5.4 mm (0.21 in)

Microphone length

12.7 mm (0.5 in)

Cable length

3 m (10 ft) / 1.8m (5.9 ft) (Lavalier Kit only)

Polarity

Positively increasing sound pressure produces positive going voltage on MicroDot pin

Temperature range

-40°C to 45°C (-40°F to 113°F)

Relative humidity (RH)

Up to 90%

Sensitivity selection tolerance (at 1 kHz)

±1.5 dB
