Dynaudio Acoustics M4 MkII
Passieve 4-weg main studiomonitor met vernieuwde MSP-drivers en Esotar 3 soft-dome tweeters, voor gebruik in grote muziekstudio
M-series MkII - M4 MkII
Vragen? Betere prijs gezien?
Bel 0512 - 340457 of neem contact op!
Product omschrijving

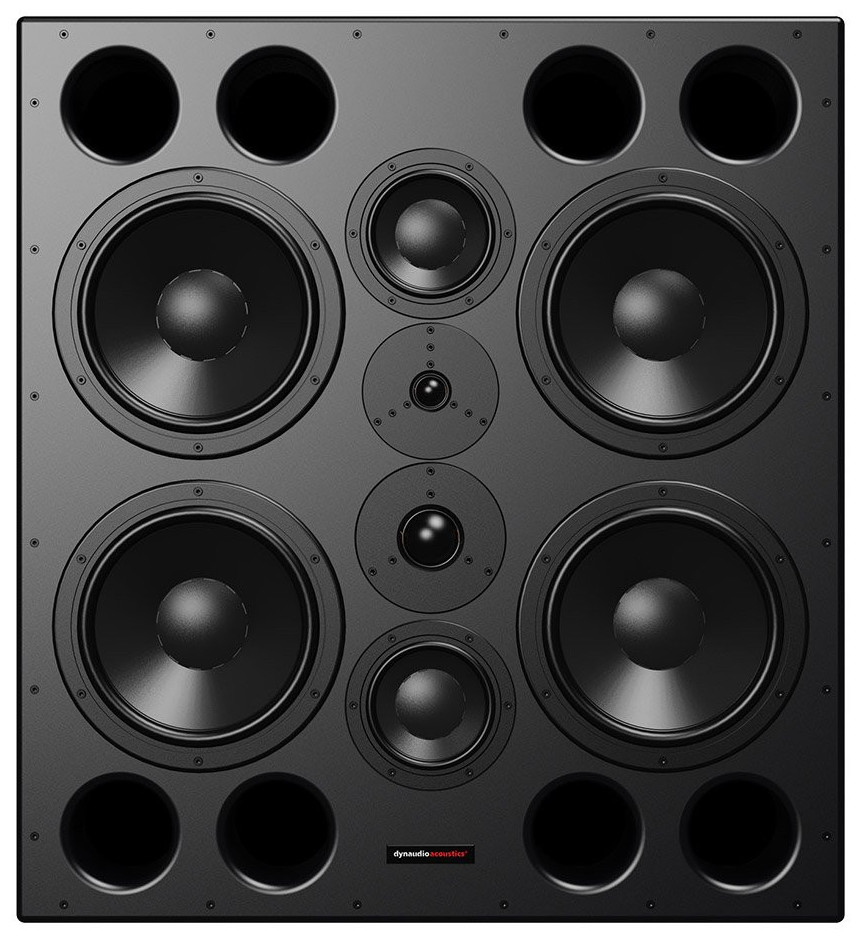

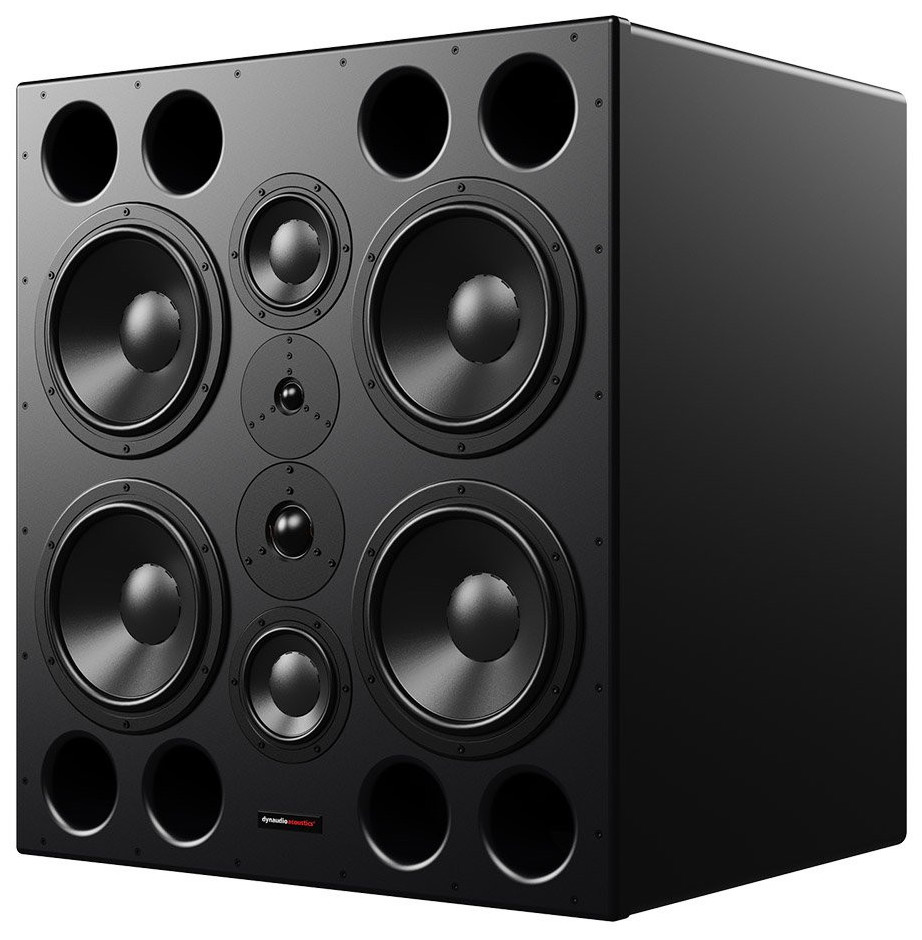

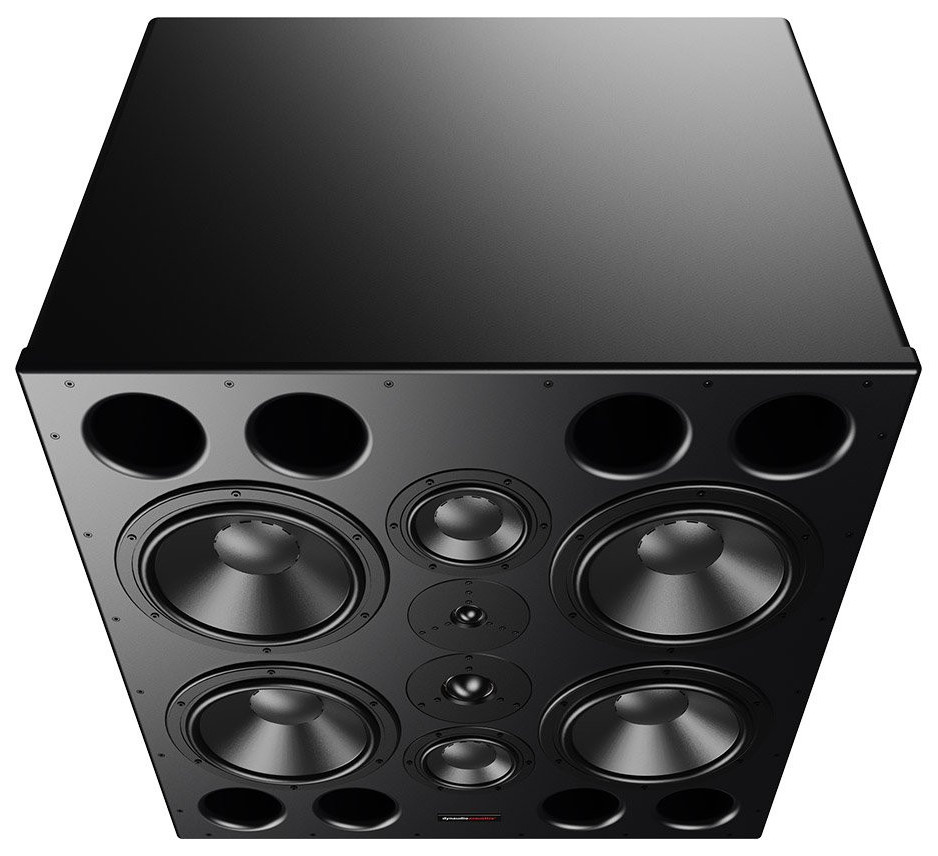

Dynaudio Acoustics M4 MkII
High-power reference monitor designed for use in large control rooms
4-WAY HYBRID
The M4 by Dynaudio Acoustics is a high quality, high-power loudspeaker system for use in large music studio monitoring applications.
It’s been designed to provide accurate, distortion-free monitoring at high power levels – maintaining exceptional quality at all times under all drive conditions.
The bass section consists of four 300mm MSP (Magnesium Silicate Polymer) drivers with 100mm ferrofluid-cooled voice coils. The low-mid section uses two 170mm MSP drivers with 75mm voice coils and neodymium magnets. The upper-midrange driver is a 54mm critically doped fabric dome Esotar model that ensures low distortion and excellent transient response. And the high-frequency unit is the legendary Estorar 3, designed to reproduce distortion-free transients of up to 1000 watts. Both Esotar units are fitted with enhanced double-magnet motors, and a high-power passive crossover links the high-mid and tweeter.
If you’ve a smaller room, you can also order a compact version of the system with two bass drivers.
Specifications
- Application: music recording and mixing
- Type: 4-way hybrid
- Frequency response: 35Hz – 20kHz
- Maximum SPL at 2m: 130dB stereo
- Crossover frequencies: 250Hz, 2kHz, 5kHz
- Total harmonic distortion: 1% at 90dB
- Recommended amplifier power: four channels: 500-1000W/channel per speaker
- Cabinet dimensions (H x W x D): 900 x 850 x 680mm
- Weight: 97kg
- Finish: black textured paint
- Drivers
High frequency: Esotar 3High mid: 56mm soft dome
Low mid: 2x 17cm MSP
Low frequency: 4x 30cm MSP - Amplifier recommendation
Dynaudio Acoustics: DA40/80 DSP, DCA800/1400 - Options
Hardwood cabinet: oak, cherry, walnut, maple
Custom cabinet sizes: on request
Also in the M-series MkII:
Dynaudio Acoustics C3 MkII
Dynaudio Acoustics M1 MkII
Dynaudio Acoustics M2 MkII
Dynaudio Acoustics M3 MkII
Dynaudio Acoustics M3F
Dynaudio Acoustics M3FX centre
Dynaudio Acoustics M3FX left/right
Dynaudio Acoustics M4 MkII
Dynaudio Acoustics MF15 horizontal
Dynaudio Acoustics MF15 vertical
Dynaudio Acoustics MF30
Dynaudio Acoustics MS15 Sub
Dynaudio Acoustics MS18 Sub
Want to know more?: Dynaudio Acoustics M-series MkII
Dynaudio M-Speakers are always manufactured after the order has been received.
Dynaudio about the M-series:
When you’re the one sitting at the mix position, you know that to send a project out into the wild is to nail your colours to the mast. You’re staking your reputation on it every time. So are the artists – the ones who know their instruments and their craft as well as they know themselves (often even better). And all of you know that what goes in absolutely must come out. Perfectly.
Audio professionals at an eyebrow-raising proportion of the world’s most influential studios swear by Dynaudio Acoustics M-series main monitors. They know that when they listen – sometimes all day and long into the night, without fatigue – they’re hearing exactly what they need to hear. Mistakes, madness, moments of genius. Everything.
This range of passive monitors has been created to meet the most unreasonable demands of power, accuracy and outright SPL. It’s for two-channel work, fully immersive projects, broadcast, dubbing, big-screen... anything that requires the highest level of control.
The M-series MkII uses upgraded Dynaudio technology across the board. New crossovers, woofers, midrange drivers (Magnesium Silicate Polymer and precision-coated soft-dome versions) and the legendary Esotar 3 soft-dome tweeter mean even better clarity. So even when you’re working with a wall of sound, you’ll be able to pick out the details that matter.
Each model is available in a variety of finishes to suit your studio (you can specify custom ones too, if you’re feeling particularly fancy). And we’ll work with you to hone your room design if you’d like us to.
The M-series has been trusted for decades by Academy Award and BAFTA winners, Grammy winners, documentary makers, filmmakers and more behind the desk at studios including Abbey Road, NRG, Netflix, AIR, Quad, Pinewood, Shepperton and Disney. That’s a reputation worth listening to.
