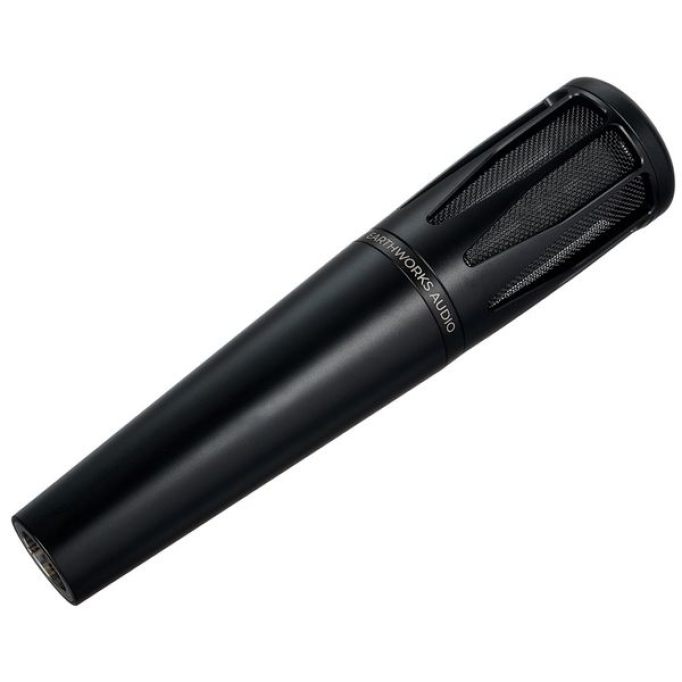

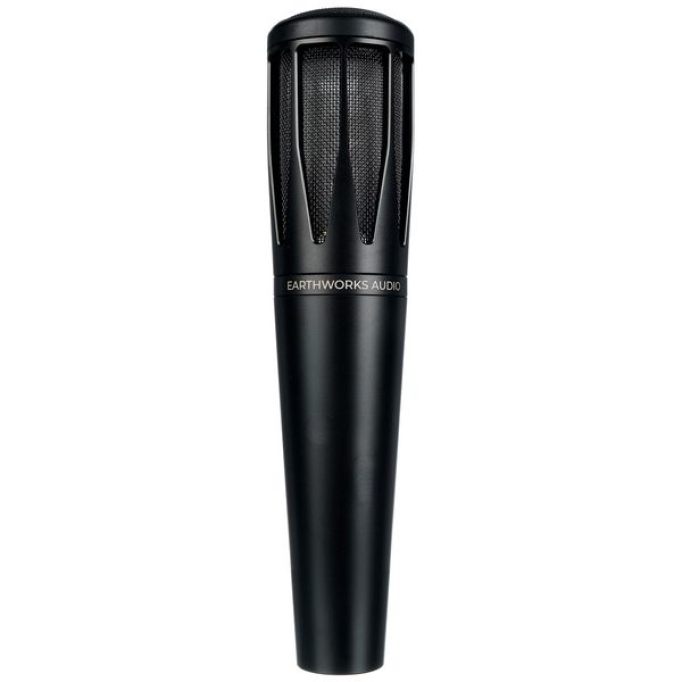

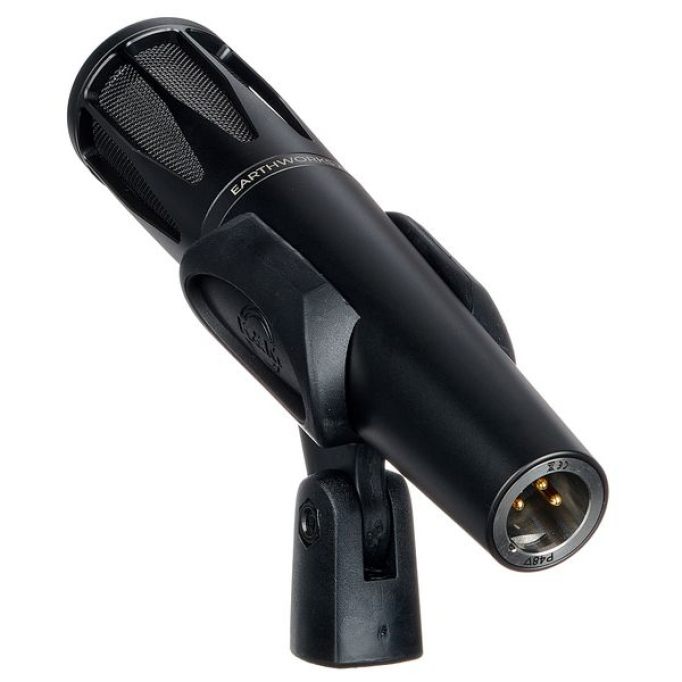

Earthworks Audio SR 314-B vocal mic

Vocals Come Alive Like Never Before. The Earthworks SR314 is designed from the ground up to meet both the expectations and desires of a modern live performance environment.

The Sound of the SR314. Your true artistic voice, fully realized. Extended flat frequency response and a focus on time coherence set the Earthworks SR314 apart.

Simple, Easy, Brilliant. Capable of handling sound pressure levels of up to 145dB without distortion, the SR314 can handle nearly any vocalist.

A Crystal-Clear Translation. With a tight cardioid polar pattern, the SR314 is imbued with levels of sound isolation not found in other microphones.

Clarity On Stage & In the Studio. A vocal microphones that can seamlessly transition between those two worlds with no compromises.

SPECIFICATIONS:

• Frequency Response: 20Hz -30kHz
• Polar Pattern: Cardioid
• Sensitivity: 20mV/Pa (-34dBV/Pa)
• Power Requirements: 24-48V Phantom, 10mA
• Signal-to-Noise Ratio: 79dB A-weighted
• Peak Acoustic Input: 145dB SPL

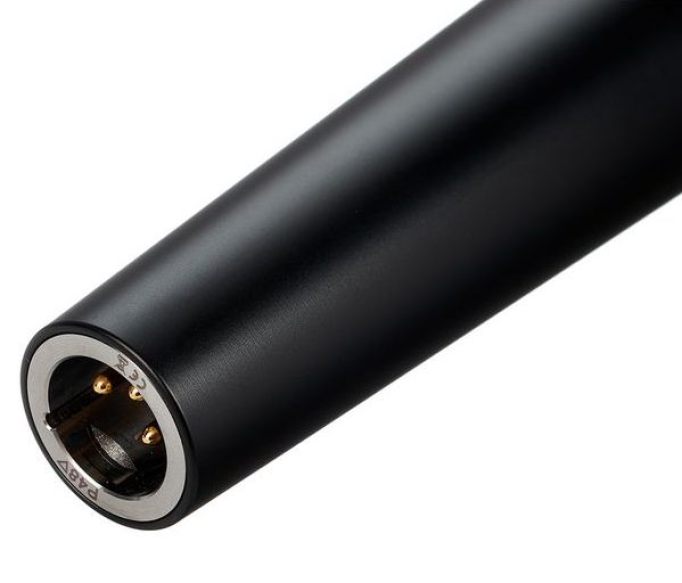

• Output: XLR (pin 2+)
• Output Impedance: 65Ω balanced (between pins 2 & 3)
• Min Output Load: 600Ω between pins 2 & 3
• Self Noise: 15dB SPL equivalent (A weighted)
• Dimensions (L x D): 181.1mm x 40.6mm (7.13 x 1.60 inches)
• Weight: .68kg (1.5 lb)
