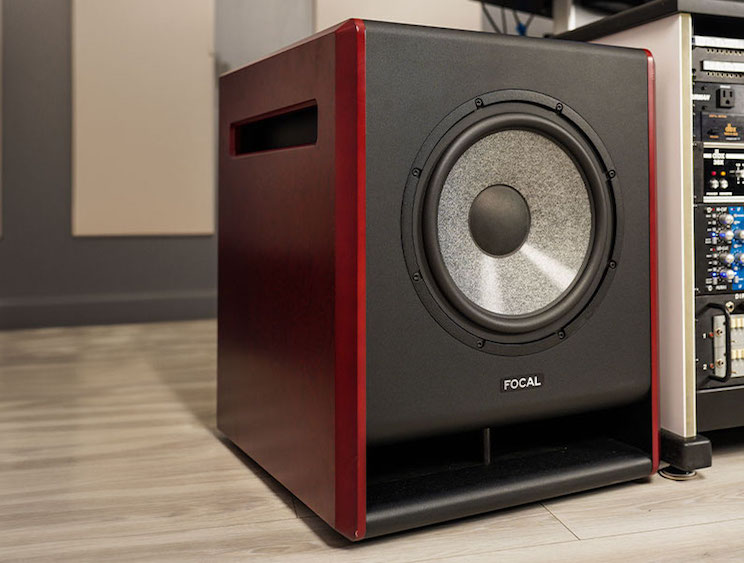

Focal subwoofer - SUB 12

Professional subwoofer

Sub12 benefits from the best of Focal technologies to deliver unparalleled bass articulation and depth. Thanks to its 13" (33 cm) ultra-high-excursion "W" cone driver and its BASH amplifier with 600 W RMS and 1000 W peak-to-peak power, sound reproduction is more impactful and faithful than ever.

FUNCTIONALITIES
Sub12 features a disengageable auto-sleep mode and variable user controls for low-pass, high-pass and phase, allowing ultimate precision for the perfect studio sound.

STOP THE NOISE
Optimized bass bracing and a front port - in addition to internal and external flares - guarantee perfect noise and distortion reduction. This subwoofer is particularly suitable for use with Trio6, Solo6 and Twin6 monitor loudspeakers.

DESIGN
Reinforced cabinetry, robust design, Sub12 is the result of high-quality engineering. What's more, large handles on the sides make it easy to transport (with two people).

FLEXIBLE AND COMPREHENSIVE
Rear controls include switches for polarity, +4 dBu or -10 dBv sensitivity, automatic standby bypass, LFE input and output. Sub12 also features an input and output for a footswitch to engage bypass on a single Sub12 or simultaneously on several Sub12s.

Specifications SUB12

Sound – Acoustics

• Product type : Monitoring grave box
• Loudspeakers :
  13'' W membrane
• Frequency response (+/- 3dB) :
  28 Hz - 400 Hz
• Maximum SPL (peak@1m) :
  125 dB

Sound - Electronics

• Inputs :
  • Left,Right,LFE
  • XLR: symmetrical 10 kOhms
  • Variable
• Mid-range and low frequency amplifier : 600 W, class G
• Indicators and controls :
  • Sub level (sensitivity) adjustment
  • Lo-passe frequency adjustment
  • Phase adjustment
  • Polarity switch
  • Mute
  • 2.1 bypass (controlled by external footswitch)
  • Hi-pass frequency selection
  • Hi-pass defeat

CUTTING-EDGE TECHNOLOGIES

The ST6 line (Solo6, Trio6 and Twin6) features high-performance Focal technologies: Beryllium tweeter, "W" diaphragm woofer and TMD® speaker suspension technology, which reduces distortion in the 1 kHz to 3 kHz frequency range by 50%.

With its emblematic "W" membrane and Beryllium tweeters, ST6 inherits Focal's best acoustic technologies. The studio monitors, ever more transparent and dynamic, deliver an unrivalled level of detail in sound reproduction.
