MASELEC MLA-2 Compressor

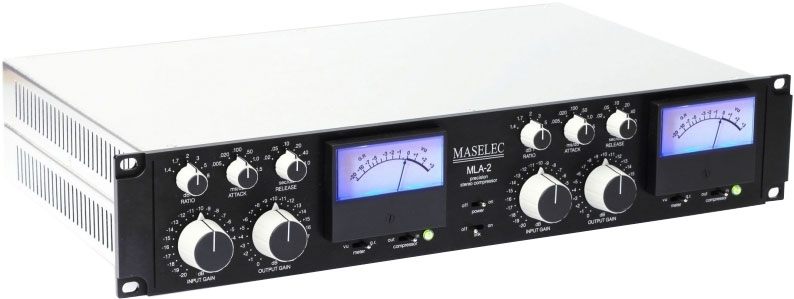

MLA-2

Precision Stereo Compressor

The MLA-2 is a stereo or 2-channel compressor with stepped drive (input gain), ratio, attack and release time and output gain controls. For optimum transparency and freedom from noise the MLA-2 employs a non-VCA design.

Applications

Top recording and mastering engineers still use some analogue signal processing equipment, finding the familiar correlation between sound and control better to work with. However, most analogue compressors have either continuously variable controls, making precise adjustments difficult, or just a few coarsely-stepped controls. Many fail to meet the standards of audio performance consistent with digital media. The MLA-2 provides fully-stepped controls for precision and repeatability for ALL parameters.

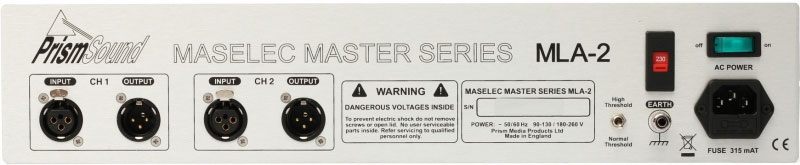

The MLA-2 is extensively used in mastering but also works well on an insertion point in recording or mixing. The MLA-2 has a rear-mounted range control switch that adjusts the threshold range to suit either mastering or recording/mixing applications.

The MLA-2 is a compressor that can provide effective dynamic control with minimal side-effects - it is designed to provide a very transparent signal path.

Pedigree and design philosophy

The combination of Leif Mases' experience with the creative process and engineering and technical excellence ensure that the Maselec MLA-2 delivers great-sounding audio in an intuitive and easy-to-use package.

Using the MLA-2

The MLA-2 is a very special Compressor that has been designed to provide effective but subtle compression. It uses the principle of a fixed threshold, with adjustable drive (or input gain). This makes for more intuitive operation than an adjustable threshold - turn the drive control clockwise and increase the compression depth.

The progression into the compression region is gradual and changes as the ratio is increased. Minimal output gain make-up adjustment is needed as the threshold is slightly modified running through different ratio settings. This creates a consistent gain point with about 2-3dB of compression across the ratio range.

About Maselec

All Maselec products are developed by Leif Mases. His experience as a producer, recording engineer and studio owner, working with Jeff Beck, Led Zeppelin, Black Sabbath, ABBA and others, is reflected in the operation and performance of his designs. Leif has developed a comprehensive range of high-quality analogue processors that offer precision, transparency and in some cases, program-dependent effectiveness.
