Milab VM 44 replacement Cardioid Capsule

Specifications

• Product name: Milab VM-44 Cardioid Capsule
• Type: Condenser
• Article number: 1144

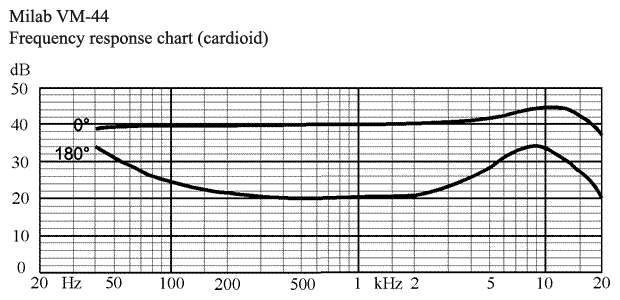

• Frequency response: 20 to 20,000 Hz

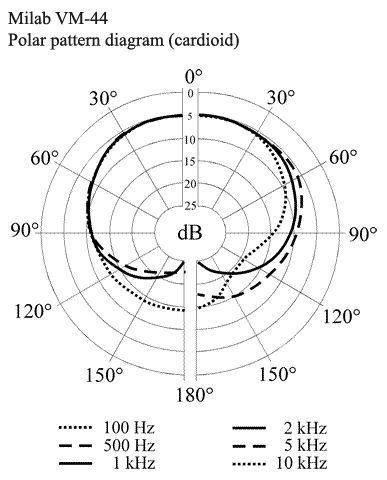

• Polar pattern: Cardioid
• Pre-attenuation pad: -12 dB (switchable)
• Max SPL (1 % THD at 1 kHz): 128 dB
• Max SPL with 12 dB pad: 140 dB
• Sensitivity at 1 kHz: 15 mV/Pa (± 1 dB)
• A-weighted noise level (IEC 179-A): 17 dB (typical); 18 dB (max)
• Power supply: 12-52 V Phantom (DIN/IEC)
• Output impedance: <200 Ω
• Minimum load impedance: 1 kΩ
• Diameter: 21 mm
