Product omschrijving
Specifications
Patterns:
Omni through cardioid through figure 8, continuous variable from power supply
Frequency range:
30Hz-16kHz, +/-2dB
Sensitivity:
27mV/Pa (-31dB=94dB SPL)
Equivalent Noise:
13dB (“A” weighted)
25dB (unweighted)
Distortion vs. SPL @ 1kHz:
110dB = 0.5% THD
117dB = 1% THD
128dB = 2% THD
(increasing distortion is non-exponential, nearly linear and primarily 2nd harmonic)
Impedance:
200 Ohms true transformer balanced
Recommended load:
1.2k Ohms
Dynamic range:
97dB
S/N (94dB-noise):
81dbB “A”, 69dB unweighted
Capsule size:
1″ diameter, single backplate k67 type
Tube type:
New Old Stock EF732 sub-mini pentode
Dimensions:
2.04″ dia x 8″ oal (51x203mm)
Weight:
1lb 8.8oz (1.55lbs) = 703g
Shipping weight:
12lbs

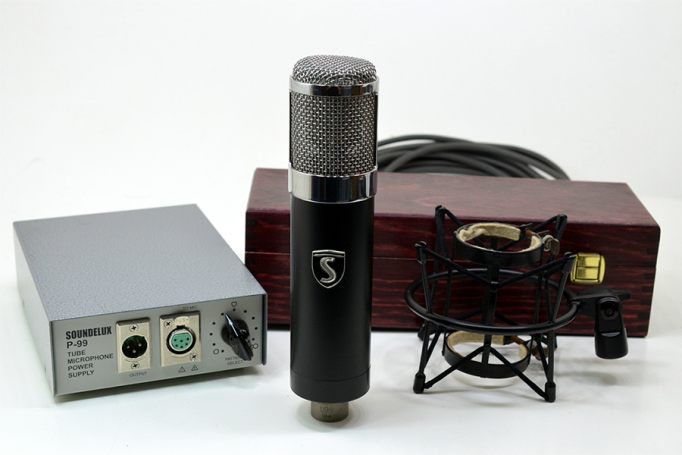

Power supply:
P99 true linear, factory wired for 115v or 230v operation
