Soyuz 013 FET single

Soyuz 013 FET single

Klein membraan condensator mics. FET en Buizen variant!

Ook als tube variant

Jaarverhuur

€1,22/ dag

Voeg toe aan jaarverhuur +

Vragen? Betere prijs gezien?

Bel 0512 - 340457 of neem contact op!

Product omschrijving

013 Series

013
SERIES

Small Diaphragm Condenser Microphone

Detailed top-end, warm mids, balanced low-end
Includes pad for loud sources

Custom small capsule designed and machined in-house
Proprietary toroidal transformer imparts color and depth

Comes in a hand-crafted Russian hardwood box
100% handmade at the Soyuz Base in Tula, Russia

Precision Meets Warmth

The 013 TUBE and 013 FET small diaphragm condenser microphones meld audio precision and transformer color into a combination of unparalleled musicality. Best-in-class transient response and the ability to capture precise detail make them ideal as drum overheads as well as for the recording of acoustic guitar, piano, choral ensembles, strings, orchestras. These microphones are perfect for any application in which clarity is necessary and character desired.

Focused & Smooth

The 013 Series combines the best elements of classic SDC designs with a unique character of its own. Both tube and FET versions capture sound with precision while imparting a warm sonic signature. The smooth top end and a midrange accuracy that is musical – never clinical – enable the recording of complex, transient-rich instruments and sounds that span the frequency spectrum and dynamic range in a warm, pleasing way.

Soyuz Microphones · 013 Series

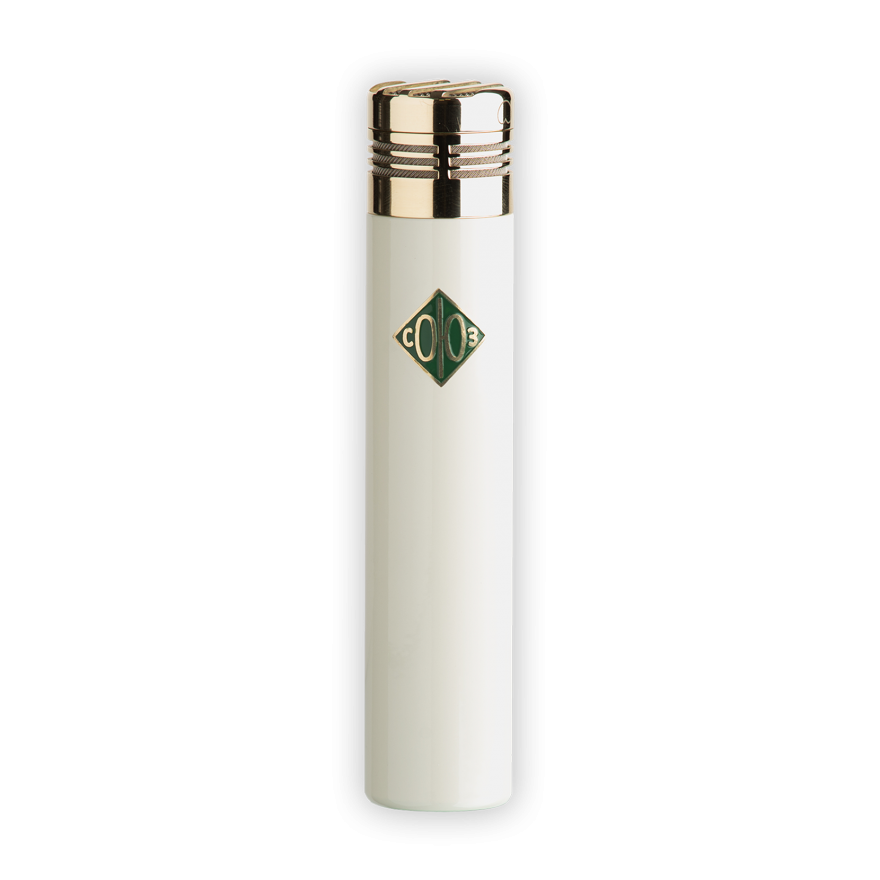

013 FET

The green badged 013 FET comes in a compact wood carrying case with a pair of 10dB pads and mounting clips making it easy to take on the road for a remote gig or a live show.

TUBE
vs
FET

The 013 Series is available in either FET or tube circuit models; both feature identical capsules and form factors. While they also share similar, natural sound profiles, there are subtle differences between them. The 013 FET’s transistor circuit captures transients with a slightly faster response; the 013 TUBE has a smooth top-end perfect for situations in which a touch of coloration is desirable.

013 TUBE

The blue badged 013 TUBE comes as a stereo pair in a handcrafted oak suitcase that includes a stereo power supply with built-in 20dB pads, two custom 4-pin cables, and mounting clips.

A Heritage of Innovation, a Tradition of Excellence

The engineers at Soyuz have spent decades studying, servicing and building classic microphones; Soyuz’ machinists are the best in the world. This unique pool of knowledge, craft and skill – combined with the ears of numerous musicians, producers and audio engineers – has culminated in the creation of the 013 Series’ custom S13 capsule. The S13, with its detailed top end, warm mid-range, and balanced low-end possesses a remarkable ability to capture source material with an accuracy that is always flattering, never harsh.

Pick a Color

The 013 Series comes in a black or cream color. The cream has a smooth sheen finish and the black with textured power coating. We supply all 013 TUBE microphones with cream power supplies, regardless of color. The microphones come with matching capsules and clips.

Handcrafted

As with all Soyuz products, the 013 Series mics are completely handmade. Each body and capsule are manually machined and our transformers are wound in-house in Tula, Russia.

Specs.

Type: FET microphone
Capsule: 25mm gold sputtered membrane
Frequency Range: 20Hz / 20kHz
Polar Pattern: Cardioid/switchable capsules: hypercardioid, omni
Sensitivity: 25 mV/Pa
Impedance: 150 Ohms
SPL: 143 dB

Equivalent Noise: 16 dB (a-weighted)
Power: Phantom 48V
Size: 122mm length x 25mm diameter (24mm capsule head diameter)
Weight: 200 grams (single microphone)
Extras: Wooden microphone box, -10 dB pad, Clip hoolder
