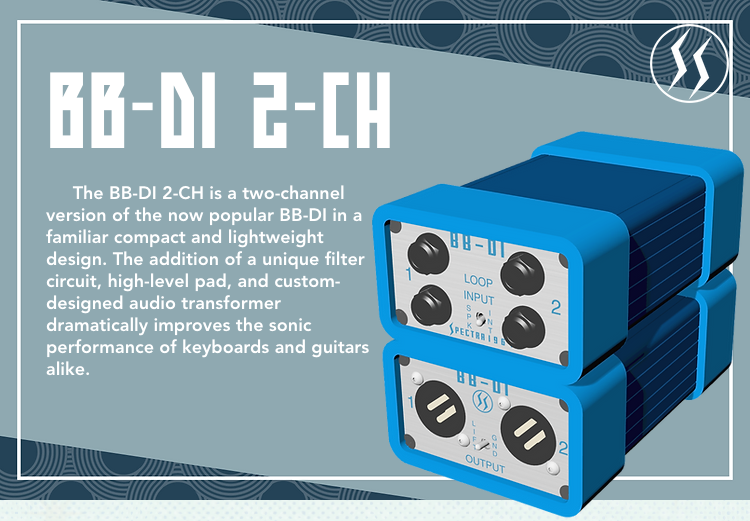

Spectra 1964 BB-DI 2-CH

Design:

The BB-DI 2CH is designed to provide accurate reproduction of keyboard and guitar source signals. The unique combination of a high-quality transformer/discrete components adds minimal "color," extremely low distortion, and extended bandwidth, 20hz to 20kHz

• Low insertion loss (typically less than 10dB)
• -18dB high-level pad
• Improved headroom over conventional designs
• Extremely low distortion
• Small, durable, lightweight design
• North American sourced components and labor

Specifications:

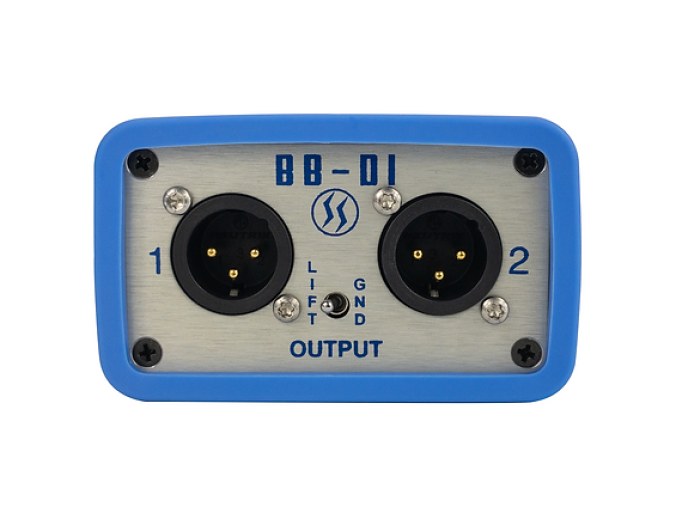

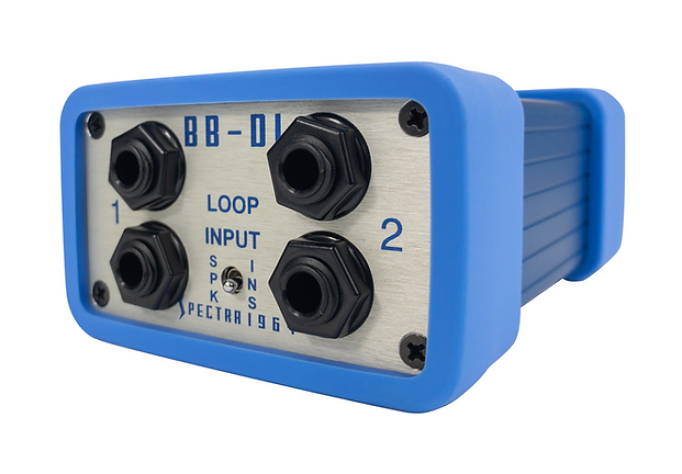

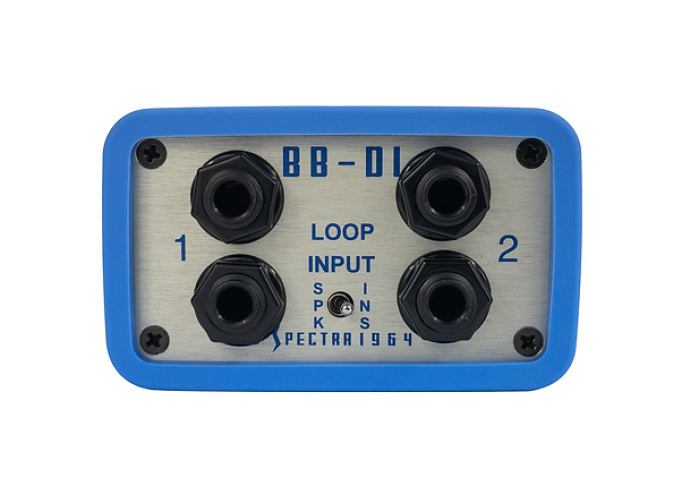

• DESIGN:  Passive, HI Z Input, Balanced Output
• SIGNAL LOSS: 15dB, Maximum
• MAXIMUM INPUT LEVEL: +15dBu, -10dBm Output, (nominal)
• FREQUENCY RESPONSE: 20Hz-20kHz, +/- 1dB*
• HIGH-LEVEL PAD: 18dB/switchable
• THD: Less than .01%, 20Hz-20kHz*

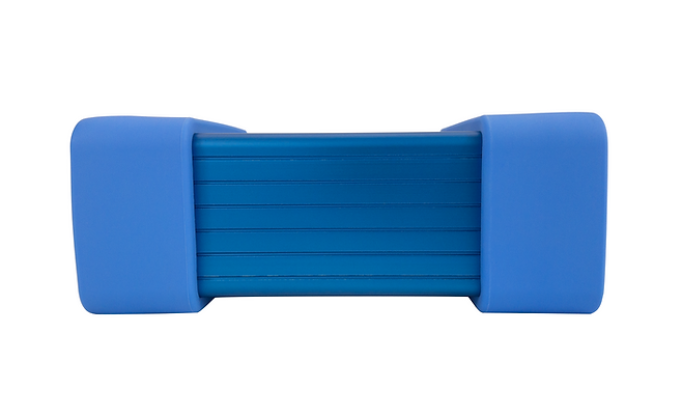

• DIMENSION: 5”D x 3”W x 1.75”H
• WEIGHT: Less than 8 ounces
• INPUT IMPEDANCE: 100k ohms (nominal)

*Output Reference Level: -10dBm
