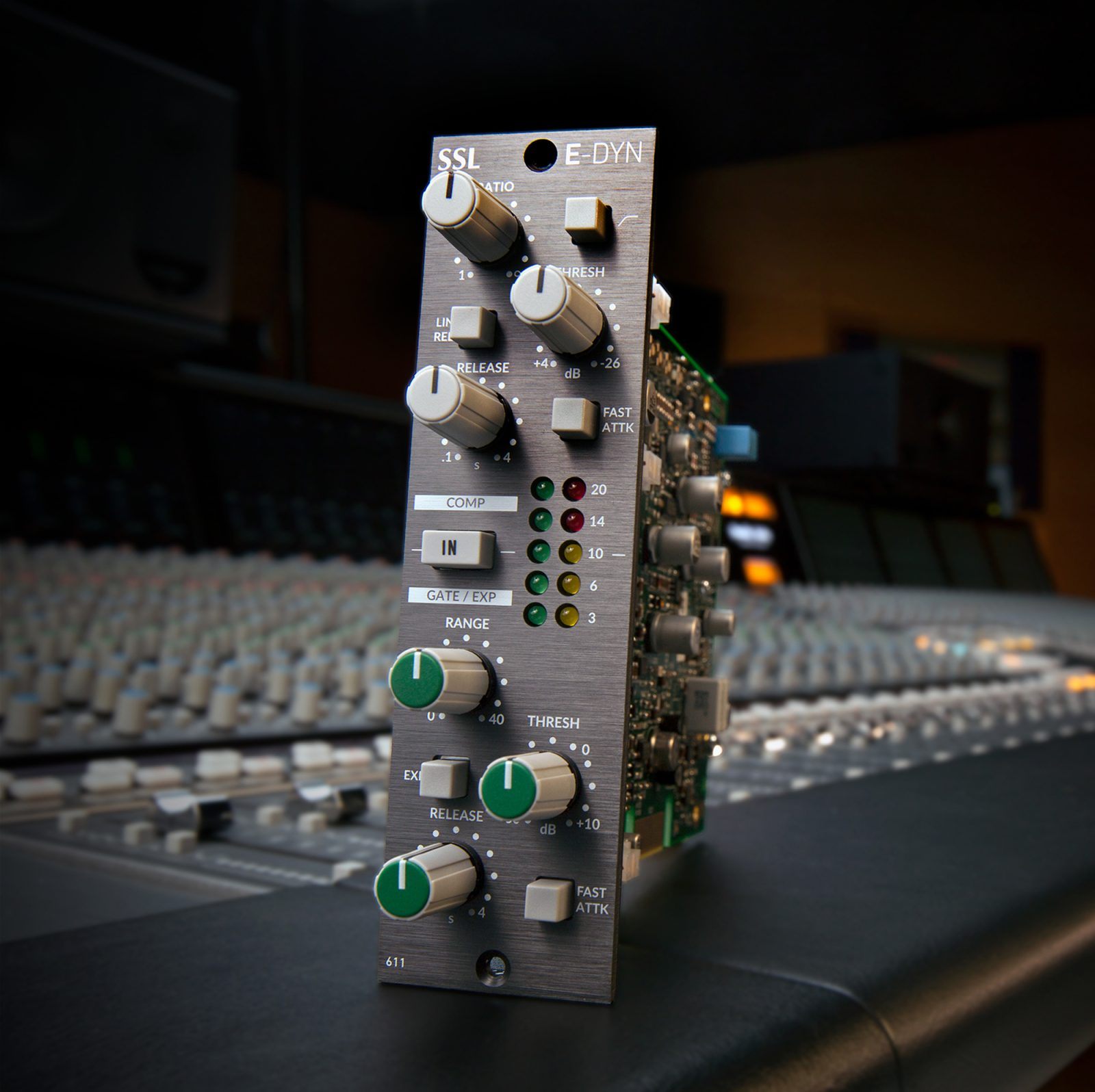

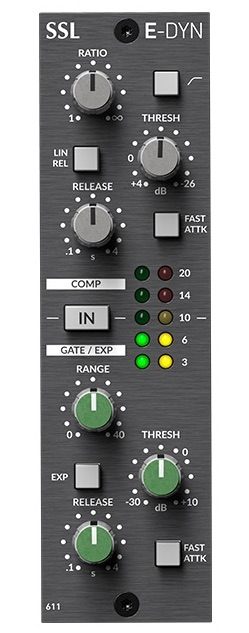

SSL Solid State Logic E-DYN

Solid State Logic E-DYN

E-Series Dynamics Module

CLASSIC SSL ANALOGUE PROCESSING IN 500-SERIES FORMAT

Legendary sonic signature of the SL 4000E

The E Series Dynamics Module for 500 Series racks reproduces the legendary sonic signature of an early 80's classic, the SL 4000 E console channel strip, which was featured on countless 1980's recordings. The E Series Dynamics Module features a compressor/limiter and an expander/gate, both of which return faithfully to the circuitry and key components which define the sound of the original SL 611E Series channel strip.

Channel compression in 500 series

A true RMS converter is used in the side chain while the gain element is an all discrete design identical to the Class A VCA chip used in the original unit. The compressor contains additional switching options to defeat the over-easy curve and to use a linear release instead of the more usual logarithmic curve. The result is a compressor with three distinct voices, each with its own musical character.
