Raumzeitmaschine

Tube Reverb

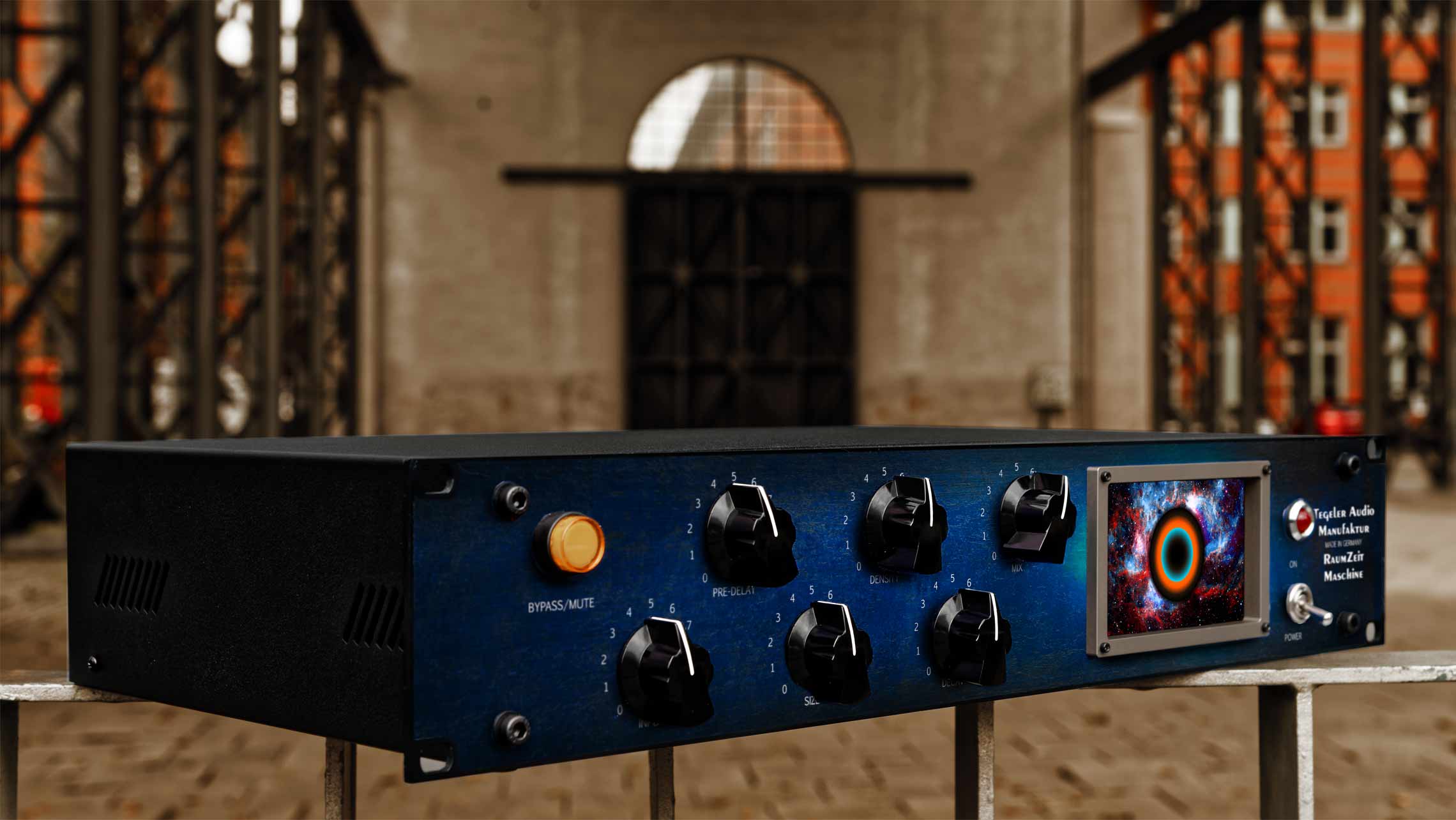

The Tegeler Audio Raumzeitmaschine creates a spatial tone that sounds very natural, transparent and clear on the one hand, but on the other hand it has a nice sound on its very own. This is achieved through the unique combination of digital and analog components. There is of course a processor that calculates the reverb. This is enriched by the typical analog sound of Tegeler’s devices.

Unique operating concept

The Raumzeitmaschine offers the most direct access to the right sound with only three parameters. Instead of plodding through hundreds of parameters (90 percent as non-programmers, not knowing what they're doing), now you can tune the sound to the way your mix needs it. An operating approach as with a real musical instrument.

Presets in simple

Tegeler have omitted the complicated preset management directly on the device. If you remember programming the timer on a VCR, then you know why. The Raumzeitmaschine is equipped with servomotors and thus controllable remotely by the DAW. Conversely, direct changes to the device also land immediately in the Raumzeitmaschine plug-in. Use the preset management of your DAW or the Raumzeitmaschine plug-in.

It's as simple as that!

Remote-controlled

All controls of the Raumzeitmaschine are equipped with servomotors. You can control it directly on the frontpanel, by the internal webserver or by the DAW plug-in (AU, AAX, VST). Because the Raumzeitmaschine connects to your computer via Ethernet, there is no limit on cable length like using USB. Wireless via your router is also no problem.

Tubes

The Raumzeitmaschine has two double triodes per channel as well as input and output transformers. That's why there are only analog inputs and outputs, not digital ones. An important sound component would otherwise be missing without it. If you like it fatter, you can even try to override the tube from the input stage.



Features

  • True stereo
  • Input: XLR, transformer-balanced
  • Output: XLR, transformer-balanced
  • Reverb processor
  • Adjustable Pre-delay, Room size, Density and Decay Time
  • Ethernet
  • Controllable by the webpage of the device or by plug-in (VST, AU, AAX)
  • Servo pots
  • Dynamic: >110dB unweighted
  • Attenuation-to-crosstalk ratio L/R >90 dB @ 1 kHz
  • Internal power supply (25W)

Specifications

  • Frequency Response: 10Hz - 22kHz
  • Maximum Input Level: +22 dBu
  • Input Impedance: ≥ 10kΩ
  • Output Impedance: < 600 Ω
  • Maximum Output Level: +24 dBu
  • Dynamic Range: ≥ 110 dB
  • Voltage: 110- 240 V~/50-60 Hz
  • Fuse: 500mA slow-blow
  • Maximum Power Consumption: < 25 W
  • Dimensions: 2 U, H:88.1 mm, W:483 mm, D:250 mm
