Product is toegevoegd aan uw winkelwagenWarm Audio WA 76 D
Getrouwe recreatie van de snelste en krachtigste “Rev D” Studio Compressor met toegevoegde opnamefuncties - eenkanaals
NieuwWA76-D
Vragen? Betere prijs gezien?
Bel 0512 - 340457 of neem contact op!
Product omschrijving

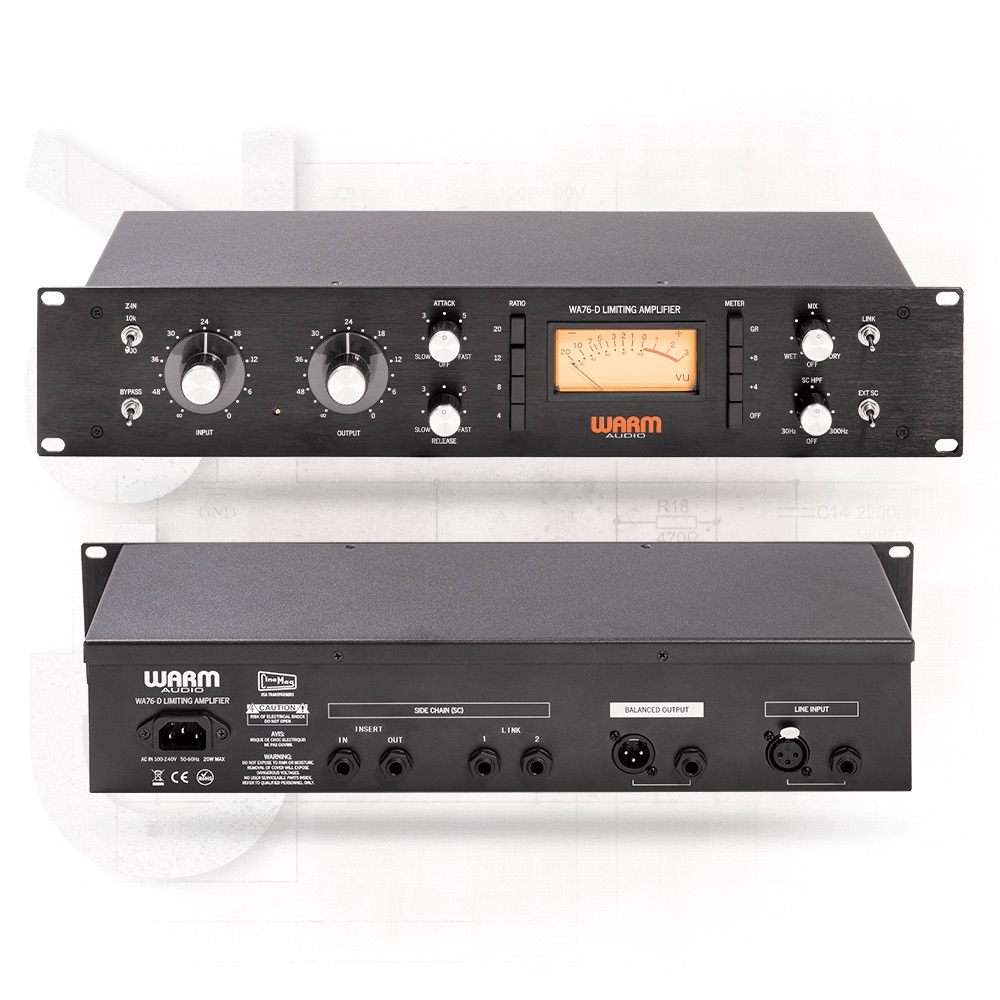

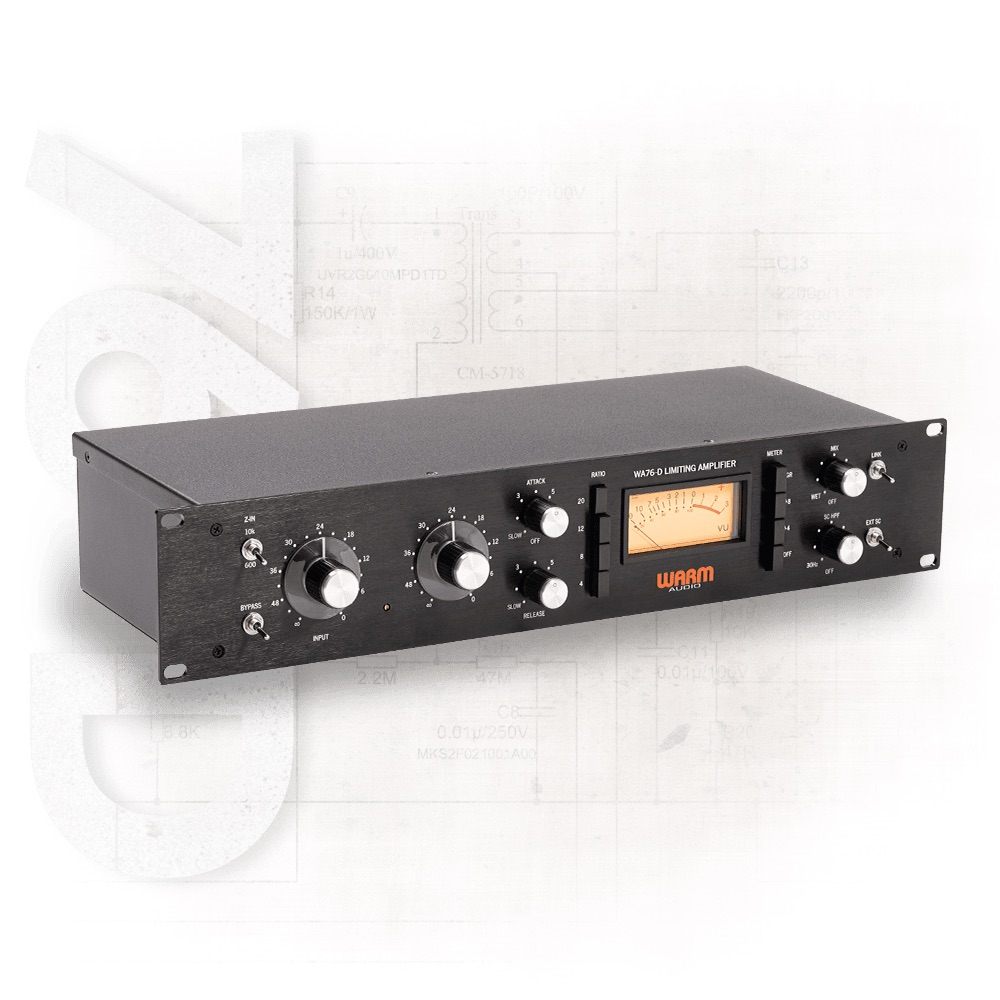

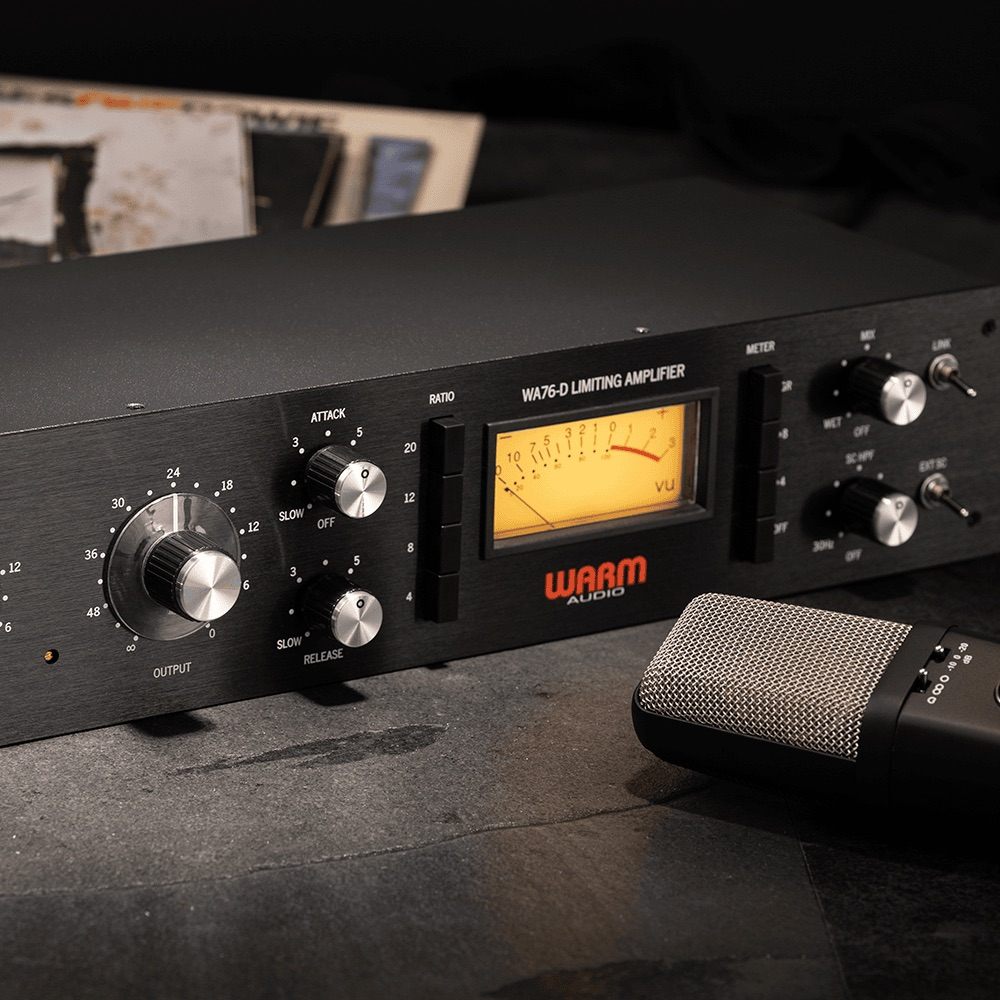

WA76-D Limiting Amplifier
SINGLE-CHANNEL CLEAN GAIN DISCRETE FET COMPRESSOR
Faithful Recreation Of The Fastest and Most Powerful “Rev D” Studio Compressor With Added Recording Features
The Timeless Sound Of Tight Compression
The Warm Audio WA76-D faithfully recreates one of the fastest and most powerful studio compressors of all time known for ultra-responsive dynamic control with rich analog tone, now with additional modern recording features. Known for use on vocals, drums, guitar, bass, and anything in the studio requiring tight dynamics, the vintage “Rev D-Style” 76 compressors are known for their versatility, speed, and harmonic analog tone added to recordings. Just like the originals, the WA76-D delivers that classic performance that can be heard on legendary recordings by artists like Missy Elliott, Daft Punk, Timbaland, Rick Rubin, Chris Lord-Alge and many more.
True-to-Spec, Plus Bonus Modern Add-Ons
Using premium and custom components like built-to-vintage-spec O-12 (input) and 5002 (output) transformers from CineMag, WA76-D achieves authentic “Revision D” compression, known for having a “lower noise” preamp stage with the ability to both compress transparently and also impart unmistakably analog character. Easily the most feature-rich 76-style compressor on the market, WA76-D has added a dry/wet knob for parallel compression, two versions of active bypass for imparting analog color, and selectable input impedance to work with modern recording interface outputs. The single-channel WA76-D has additional sidechain flexibility allowing either key inputs to be inserted or EQs for de-essing, as well as stereo linking. The stereo model (WA76-D2) has multiple stereo operating modes that transform the compressor from a stereo unit, dual-mono unit, and lead: follow compressor with the A channel controlling the B channel.
SINGLE CHANNEL ONLY: WA76-D has two stereo linking jacks to link up to 10 WA76-D compressors for surround/immersive compression. External sidechain inputs and outputs are added to insert key inputs to achieve “ducking” or adding an EQ on the input and output for analog de-essing in real time.
Technical Specifications
PRODUCT DESCRIPTION & EXTERNAL SPECS (PER CHANNEL)
- 100% Analog Discrete FET Compressor
- Faithful Recreation Of The Vintage “Rev D” FET Compressor With Added Recording Features
- VU Meter Options: Gain Reduction | +8dB Output | +4dB Output | “Off” Powers off unit
- 100-230v IEC Inlet Universal Power Supply
- Selectable 10kΩ Input Impedance To Better Match Modern Audio Interface Specifications
- 100% Dry-Wet Mix Control
- Variable Sidechain High Pass Filter: 30 - 300Hz, 12dB/Octave
- ¼” Stereo Link & External Sidechain Access
- Active Bypass For Running Unit As Line Amplifier & True Bypass Option For A/B Comparisons
- 2U 19″ Rackmount Chassis
- “All-Buttons-In” Setting For Experimental & Hard-Limiter Tones
- Balanced XLR & TRS Inputs & Outputs
- Single Chassis Depth: 6.5” | 16.25 cm

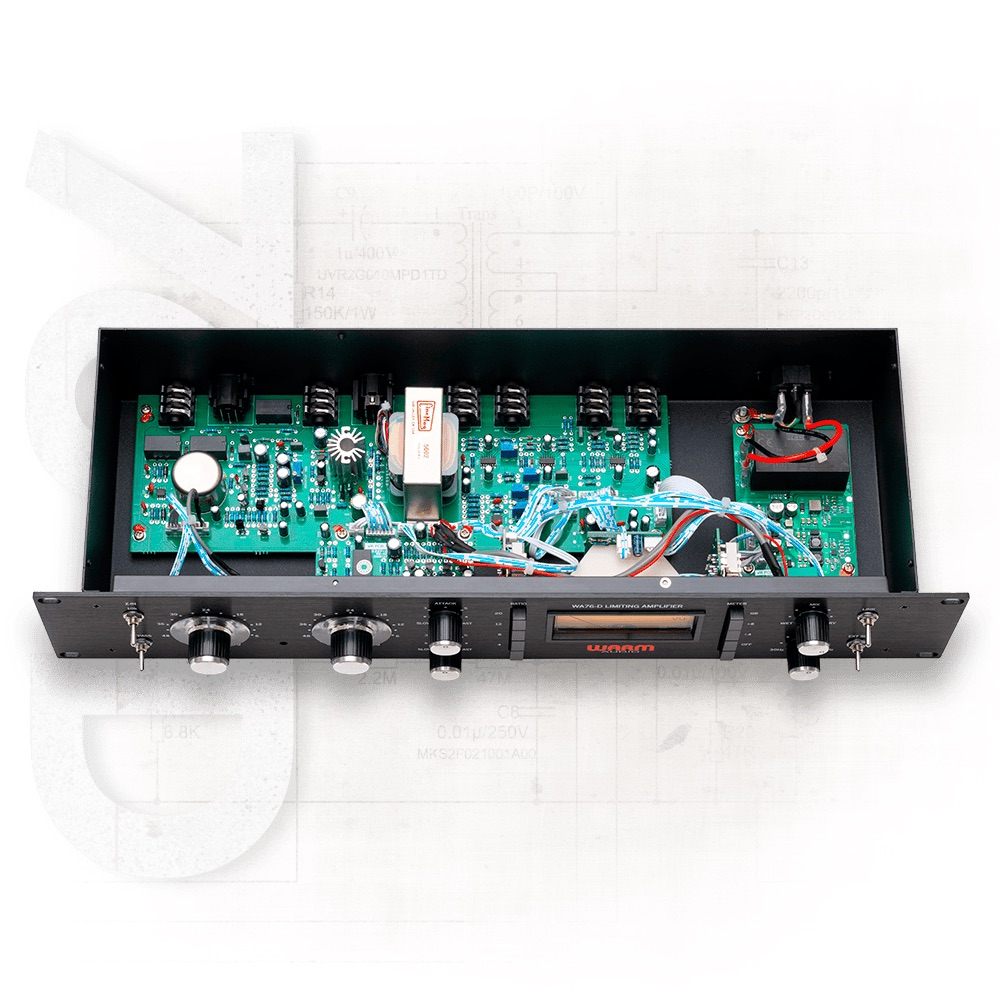

COMPONENTS & INTERNAL SPECS (PER CHANNEL)
- Class-A Line-Level Output Amplifier
- 100% Discrete Audio Signal Path Using 600Ω Input Impedance Attenuator
- Utilizes Premium O-12 Input & 5002 Output Transformers From CineMag USA
PERFORMANCE SPECS (PER CHANNEL)
- Vintage-Spec Attack & Release: Attack = 20 µS - 800 | Release: 50 mS - 1.1 Second
- Frequency Response: ± 1 dB 20 Hz - 20 kHz
- Total Amplifier Gain: 53dB
- Signal-To-Noise Ratio (SNR): 92dB (a-weighted)
- Total Harmonic Distortion Ratio (THD+N): -67dB (at -6dBu)
Also available: WA76-D2 dual-channel Limiting Amplifier
