Product omschrijving

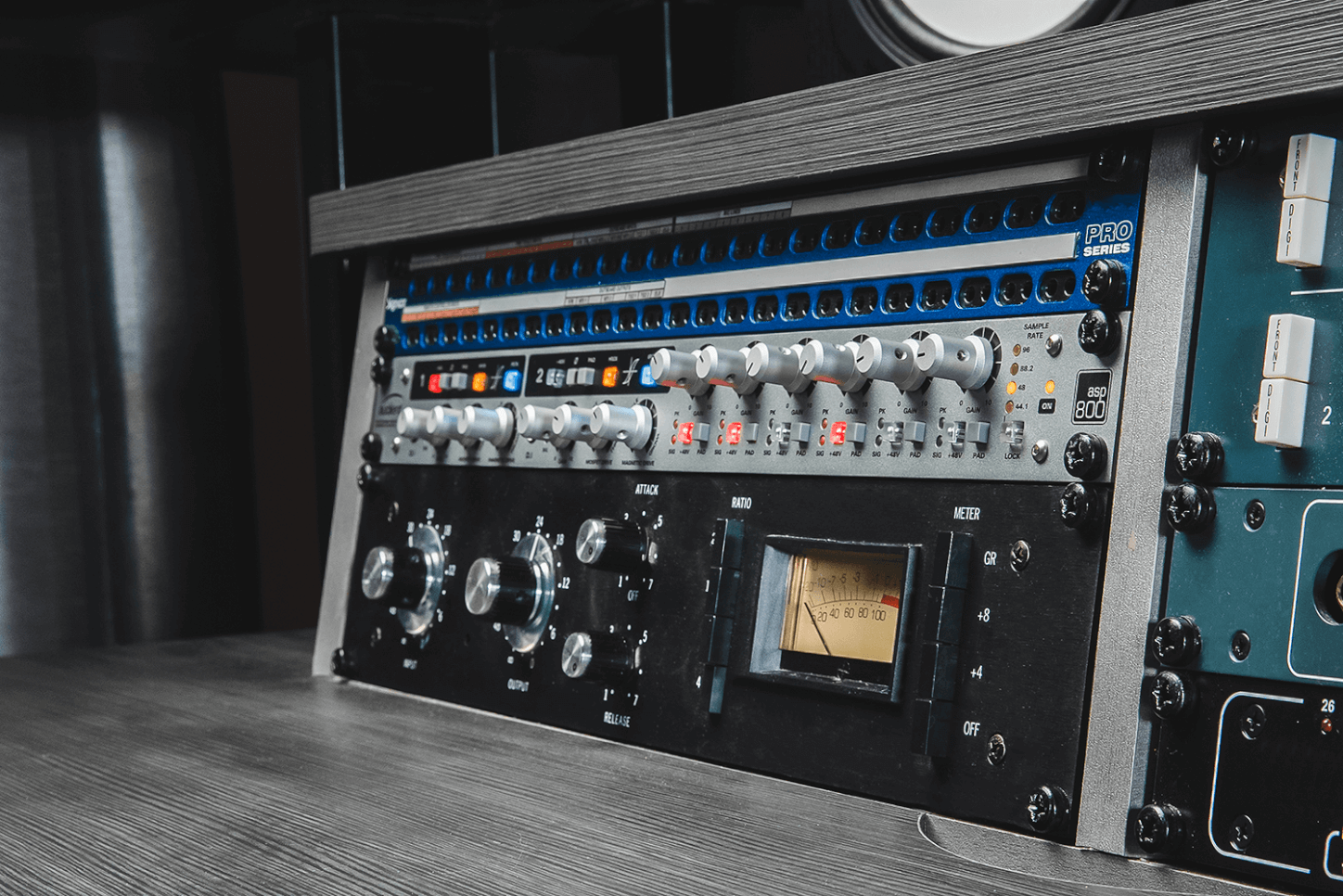

ASP800 is an audio powerhouse designed with expandability in mind, making it the perfect addition to your audio interface. Upgrade your current setup with 8 channels of Audient’s Console mic preamps, 8 line inputs, class leading converters, two JFET D.I’s and two Retro Channels with powerful tone control.
Expand via ADAT:
More channels,
more possibilities
ASP800 is the perfect tool for expanding your existing interface. Add 8 channels of Audient mic pre via ADAT and transform your current setup into the complete recording rig.
Audient Console Mic Pres
The professional
sound you deserve
Tackle any project with the renowned Audient Console Mic Preamp, the same discrete circuit design found in our renowned recording console the ASP8024-HE. Designed to deliver ultra-low noise and low distortion with a touch of classic analogue warmth, ASP800’s eight Audient Console mic pre’s will give you the professional sound you deserve.
The Retro Channels
Add colour to your audio
Designed to emulate tones often associated with 1960’s tube designs and the coveted transformer zing of British audio in the 1970’s, HMX & IRON give you the option to add analogue tone to your recordings.
HMX
Harmonic saturator
By using discrete MOSFET technology HMX produces asymmetrical harmonic distortion, giving you the option to add richness and body to the pristine tone of the Audient mic preamp.
IRON
Transformer drive
Using a custom British transformer with a high voltage MOSFET drive network, IRON is designed to add saturation reminiscent of magnetic tape distortion and recreate that sparkly, “sounds like a record” signature of 1970’s recording.
How does it work?
One control simultaneously alters drive impedance, bass response, high frequency damping, phase shift, magnetic saturation and transient shaping, letting you instantly add character to your audio.
MIC GAIN: SWITCHABLE PAD: LINE GAIN: PHANTOM POWER: MIC EIN: CMRR: MAXIMUM INPUT LEVEL: INPUT IMPEDANCE (Mic): INPUT IMPEDANCE (Line): FREQUENCY RESPONSE: CROSSTALK: THD+N @ 0dBu (1kHz): SNR: XLR COMBI FEMALE: 1/4” TRS JACK: |
0 to 70 dB (extra gain stage for more!) -15 dB (all channels front panel switchable) -10 to 60 dB (-25 to 45 dB inc. PAD) 48V ±4V @ 10mA / channel <-127.0 dBu >80 dB @ 100Hz to 2kHz +20 dBu (+35 dBu with PAD) >2k Ω balanced (approx. 2.2k Ω) >8k Ω balanced (approx. 8.6k Ω) ±0.5 dB 10Hz to 100kHz @ min. gain < -90 dBu 10Hz to 10kHz <0.003% (-90.5 dBu) mostly 3rd harmonic >90 dB @ min. gain Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield) Tip (Hot), Ring (Cold) & Sleeve (Shield) |
CHIPSET: DIGITAL REFERENCE LEVEL: FREQUENCY RESPONSE: CROSSTALK: THD+N @ -1 dBFS (1kHz): THD+N @ -6 dBFS (1kHz): DYNAMIC RANGE: PEAK LED LINEUP: SIGNAL LED LINEUP: |
Burr-Brown PCM4204 24-bit PCM Selectable via Rear Panel, 0 dBFS = +18 dBu (iD22 Professional), 0 dBFS = +12 dBu (iD14 Prosumer) ±0.1 dB 20Hz to Fs/2 (Nyquist) <-110 dBFS @ 1kHz & <-90 dBFS @ 10kHz 0.0015% (-96.5 dB) 0.0009% (-101 dB) 113.5 dB un-weighted, 116.0 dB A-weighted -2 dBFS (moves with reference level) -38 dBFS (moves with reference level) |
